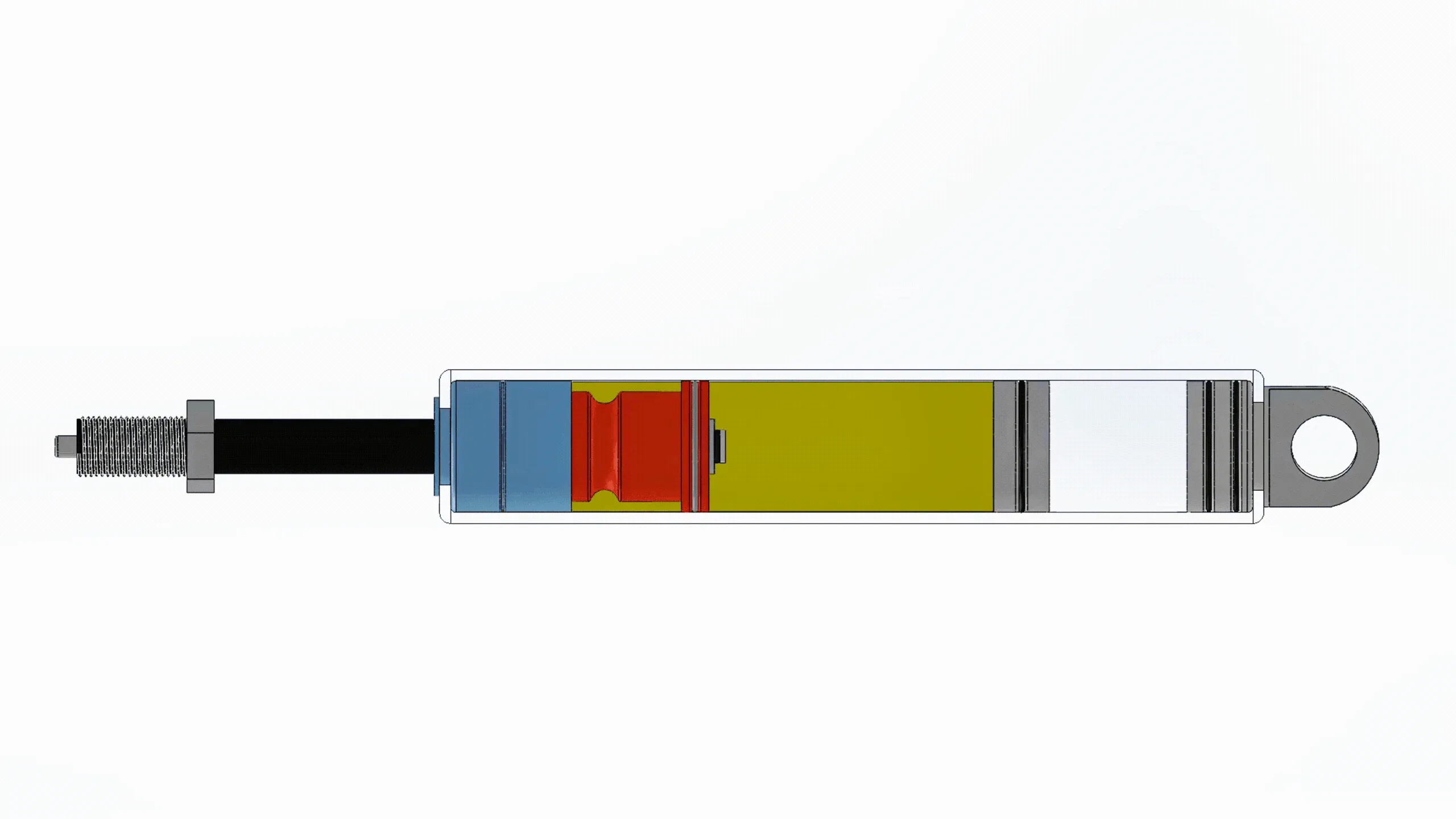

A locking gas spring is type of gas spring that can hold its position when extended or compressed, providing controlled motion and support. It contains pressurized gas and a locking mechanism that, when engaged, prevents the piston rod from moving, allowing it to securely hold heavy objects in place.
Locking Gas Strut Type
Elastic Locking
Extension and compression with damping effect.
Item
∅ Tube(mm)
∅ Piston rod(mm)
Stroke(mm)
Extension force(N)
Type of Locking
GASTACE1
22
10
20 – 250
200 – 800
Elastic
GASTACE2
28
10
20 – 250
200 – 1,000
Elastic
Locking gas spring is divided into elastic locking gas spring, rigid extension locking gas spring and rigid compression locking gas spring.
Item
Extended length
Compressed length
Stroke
∅ Piston rod(mm)
∅ Tube (mm)
GST102220
110
90
20
10
22
GST102820
28
GST102230
130
100
30
10
22
GST102830
28
GST102240
150
110
40
10
22
GST102840
28
GST102260
190
130
60
10
22
GST102860
28
GST102280
230
150
80
10
22
GST102880
28
GST1022100
270
170
100
10
22
GST1028100
28
GST1022120
310
190
120
10
22
GST1028120
28
GST1022160
390
230
160
10
22
GST1028160
28
GST1022200
470
270
200
10
22
GST1028200
28
GST1022250
590
340
250
10
22
GST1028250
28
Lcoking Gas Spring Applications
Automotive: Used in vehicle hoods, tailgates, and trunk lids to assist in opening and holding them open without manual effort.
Medical and Industrial Equipment: Used for positioning and adjusting the height or angle of various equipment pieces.
Rigid Locking Gas Spring in Extended Position
Lockable in extension direction, damping effect in compression direction
Item
∅ Tube(mm)
∅ Piston rod(mm)
Stroke(mm)
Extension force(N)
Type of Locking
GASTACRE1
22
10
20 – 250
200 – 800
Rigid
GASTACRE2
28
10
20 – 250
200 – 1,000
Rigid
Item
Extended length
Compressed length
Stroke
∅ Piston rod(mm)
∅ Tube (mm)
GST102220
130
110
20
10
22
GST102820
10
28
GST102230
160
130
30
10
22
GST102830
10
28
GST102240
190
150
40
10
22
GST102840
10
28
GST102260
230
170
60
10
22
GST102860
10
28
GST102280
270
190
80
10
22
GST102880
10
28
GST1022100
330
230
100
10
22
GST1028100
10
28
GST1022120
390
270
120
10
22
GST1028120
10
28
GST1022160
470
310
160
10
22
GST1028160
10
28
GST1022200
570
370
200
10
22
GST1028200
10
28
GST1022250
710
460
250
10
22
GST1028250
10
28
Lcoking Gas Spring Applications

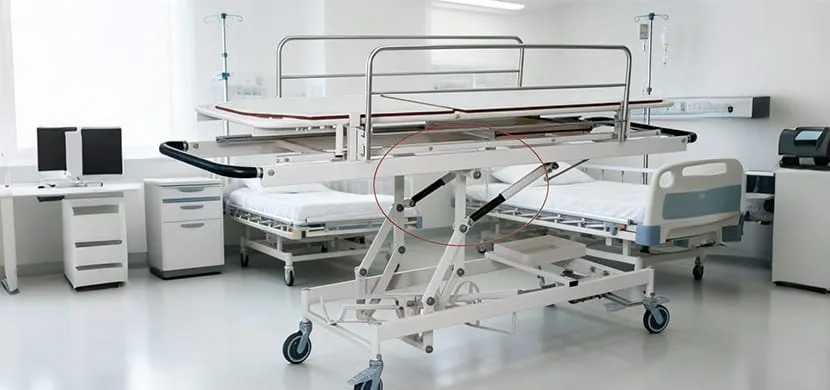

Medical Equipment: Used in hospital beds, examination tables, and other medical devices where precise positioning and stable support are needed.
Automotive: Often found in vehicle hoods, tailgates, and trunk lids, providing support and holding them open without any additional support struts.
Industrial Machinery: Used in equipment that requires precise positioning and a secure hold, such as adjustable workbenches, machinery covers, and doors.
Furniture: In adjustable chairs and tables, where the ability to lock in an extended position is useful for maintaining a desired height or angle.
Rigid Locking Gas Spring in Compressed Position
Lockable in compression direction, damping effect in extension direction
Item
∅ Tube(mm)
∅ Piston rod(mm)
Stroke(mm)
Extension force(N)
Type of Locking
GASTACRC1
18
8
30 – 300
200 – 800
Rigid
GASTACRC2
22
8
30 – 300
200 – 1,000
Rigid
Item
Extended length
Compressed length
Stroke
∅ Piston rod(mm)
∅ Tube (mm)
GSTR81830
120
80
30
8
18
GSTR82230
8
22
GSTR81850
160
110
50
8
18
GSTR82250
8
22
GSTR81870
210
140
70
8
18
GSTR82270
8
22
GSTR818100
270
170
100
8
18
GSTR822100
8
22
GSTR818130
330
200
130
8
18
GSTR822130
8
22
GSTR818160
400
240
160
8
18
GSTR822160
8
22
GSTR818190
470
280
190
8
18
GSTR822190
8
22
GSTR818220
550
320
220
8
18
GSTR822220
8
22
GSTR818250
630
380
250
8
18
GSTR822250
8
22
GSTR818300
720
420
300
8
18
GSTR822300
8
22
Lcoking Gas Spring Applications
Medical Equipment: Used in hospital beds, operating tables, and other medical devices that require adjustable positioning and stable, locked support in a compressed position.
Automotive: Often used in car seat adjustments, trunk lids, or convertible tops where secure locking in a specific position is needed for safety and comfort.
Industrial Machinery: Commonly found in machinery and equipment that require adjustable positioning, such as presses, lifting devices, or safety guards.
Furniture: Used in applications like adjustable chairs, tables, or reclining mechanisms where locking in a compressed position is necessary for comfort and safety.
