A gas strut awning window is an advanced window system that uses gas struts (also known as gas springs or gas lifts) to provide smooth opening, reliable support, and controlled movement. Compared with traditional window stays, gas strut awning windows offer better stability, easier operation, and improved user experience, especially for large or heavy window panels.
For window manufacturers, architects, and OEM suppliers, selecting the right gas strut system is critical to ensure the awning window performs safely and reliably throughout its service life.
As the leader of this Chinese gas spring industry, GASTAC gas spring manufacturers provide customized gas spring solutions, helping customers optimize the force, stroke length, installation design and material selection of the gas spring application for different windows.

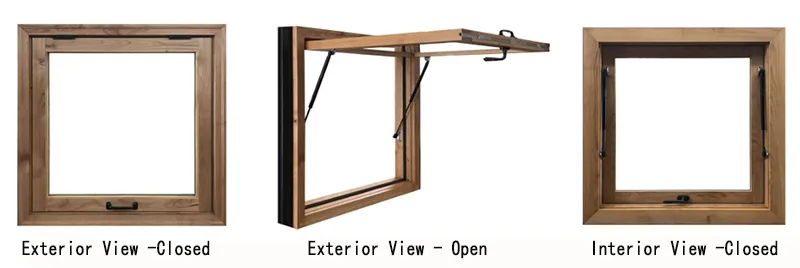

What Is a Gas Strut Awning Window?
A gas strut awning window is a top-hinged window that opens outward and upward, supported by gas struts—mechanical components filled with compressed gas that assist in lifting, holding, and controlling the window’s movement .
Unlike traditional awning windows that rely solely on manual cranks or friction hinges, gas strut windows use pneumatic technology to deliver smooth, effortless operation. The gas struts act as counterbalances, making even large, heavy glass panels easy to open and close with minimal force .
Other names you might encounter: These windows are also called “pass-through awning windows,” “hydraulic windows” (though that’s technically inaccurate—they use gas, not liquid), or simply “strut windows”
Why Are Gas Strut Awning Windows So Popular?
Modern window designs continue to become larger, heavier, and more energy-efficient. Double-glazed glass, thermal insulation frames, and larger opening sizes create higher demands on window hardware.
Designing the sunshade window with a gas strut system offers several advantages:
1. Smooth and Easy Window Operation
Gas struts provide assistance during opening, allowing users to operate heavier window panels with less effort. This is especially important for:
- Large architectural windows
- High-performance glazing systems
- Commercial buildings
2. Stable Window Positioning
Unlike traditional friction stays, gas struts can maintain a controlled opening position. This helps:
- Improve ventilation control
- Prevent unexpected movement
- Enhance user safety
3. Reduced Stress on Window Hardware
Heavy window panels create significant pressure on hinges and frames. A gas strut helps distribute the load, reducing stress on:
- Hinges
- Window frames
- Locking mechanisms
4. Better User Experience
For premium window systems, smooth operation is an important selling point. A reliable gas strut system improves:
- Comfort
- Safety
- Product quality perception
5. Versatile Applications
One of the key advantages of gas strut awning windows is their versatility across different industries and applications.
Gas struts can be customized according to different window sizes, weights, opening angles, and environmental conditions, making them suitable for a wide range of window systems. Common applications include:
- esidential kitchens and patios
- Restaurant and bar serveries
- Café pass-through counters
- Hospitality and entertainment venues
- Sports stadium VIP boxes
How to Choose the Right Gas Strut for an Awning Window?
Choosing a gas strut for an awning window is not simply based on window size. Several technical factors must be considered.
| Specification | Why It Matters | What to Ask Your Supplier |
|---|---|---|
| Force (N) | The core parameter, measured in Newtons. Force must precisely match the window weight — too high makes closing difficult, too low won't hold the window open. Awning windows typically require 50N – 800N. | Can you provide accurate force calculation based on window weight? What is your force tolerance? (Industry standard: ±5% to ±10%) |
| Stroke & Extended Length | Stroke determines the opening angle; extended length determines mounting hole positions. Awning windows typically open to 90°–105°, requiring the stroke to match the sash hinge position. | What stroke ranges do you offer? Can you customize non-standard strokes based on my window drawings? |
| Piston Rod Material & Corrosion Resistance | Awning windows are often used outdoors or in humid kitchen environments. The piston rod is the moving part most vulnerable to corrosion. 316L stainless steel is the top choice for outdoor/coastal applications; chrome/nickel plating suits indoor use. | What materials do you offer? What is your salt spray test (NSS) rating? (240h / 480h / 720h) |
| Sealing System & Leakage Rate | Gas struts operate on sealed nitrogen gas — seal integrity determines service life. Premium struts with low leakage rates should lose ≤ 2% of initial force per year. | What seal material do you use? (NBR / FKM / PU) Do you have annual leakage rate data? |
| Damping Characteristics | Awning windows need end-of-stroke cushioning to prevent slamming against limit stops — which causes noise and damage. The "damping section" is the deceleration effect at the end of the stroke. | What is your damping length? Is the damping force adjustable? |
| End Fittings | The gas strut connects to the window frame and sash at both ends — fitting type determines installation convenience. Common types: ball socket, clevis/U-fork, pin hole, threaded stud, etc. Awning windows typically use ball socket fittings to allow angular misalignment. | What fitting types do you offer? Can you customize fittings based on my mounting method? |
| Service Life & Testing Standards | Buyers need to know how long the product lasts. Premium gas struts should show force decay ≤ 20% after 100,000 open-close cycles. | Do you have third-party (SGS/TÜV) endurance test reports? What warranty do you offer and for how long? |
Why These 7 Factors are Crucial for Purchasers and Agents?
- Force & Stroke: Determine whether the gas strut will actually fit the customer’s window.
- Material & Sealing: Determine the strut’s durability in harsh environments like outdoors or kitchens.
- Damping & End Fittings: Determine the user experience after installation and whether you will face customer complaints.
- Service Life & Testing: Determine your ability to present hard data to convince customers to place an order, rather than relying on mere verbal claims.
GASTAC Gas Strut Solutions for Different Awning Window Sizes
Different awning window sizes require different gas strut solutions to achieve smooth operation and reliable support. Whether you are designing a compact residential window or a large commercial awning window, GASTAC can help develop the right awning window gas struts based on your specific window dimensions, weight, and application requirements.
Below are the common gas strut awning window sizes used for different window applications as a general reference.
| Custom Gas Strut Windows | Gas Strut Awning Window 36″W x 36″H | Gas Strut Awning Window 42″W x 36″H | Gas Strut Awning Window 42″W x 42″H | Gas Strut Awning Window 48″W x 36″H |
| Gas Strut Awning Window 48″W x 42″H | Gas Strut Awning Window 48″W x 48″H | Gas Strut Awning Window 54″W x 36″H | Gas Strut Awning Window 54″W x 42″H | Gas Strut Awning Window 54″W x 48″H |
| Gas Strut Awning Window 54″W x 54″H | Gas Strut Awning Window 60″W x 36″H | Gas Strut Awning Window 60″W x 42″H | Gas Strut Awning Window 60″W x 48″H | Gas Strut Awning Window 60″W x 54″H |
| Gas Strut Awning Window 60″W x 60″H | Gas Strut Awning Window 72″W x 36″H | Gas Strut Awning Window 72″W x 42″H | Gas Strut Awning Window 72″W x 48″H | Gas Strut Awning Window 72″W x 54″H |
| Gas Strut Awning Window 72″W x 60″H | Gas Strut Awning Window 72″W x 72″H | Gas Strut Awning Window 84″W x 60″H | Gas Strut Awning Window 96″W x 60″H | Gas Strut Awning Window 120″W x 60″H |
If you would like to learn more about gas strut windows, please visit the GASTAC window gas strut details page.
Why GASTAC Is the Supplier That Checks Every Box
As a leading manufacturer in the Asia-Pacific gas spring market, GASTAC has built its reputation on engineering precision and manufacturing consistency. Here’s how we address each of the 7 critical specs:
| Spec | GASTAC Advantage |
|---|---|
| Force | Free engineering support for force calculation; ±5% tolerance; custom force values available |
| Stroke & Length | Wide standard range + full OEM/ODM custom capability |
| Piston Rod | 316L stainless steel standard for outdoor/coastal; 304 stainless steel and plated options carbon for indoor |
| Sealing | FKM (Viton®) seals for superior heat/chemical resistance; ≤2% annual leakage guaranteed |
| Damping | Built-in end-of-stroke damping; multiple damping profiles available |
| End Fittings | Ball sockets, clevis, threaded studs, eyelets — and custom bracket design support |
| Testing & Warranty | 100,000-cycle endurance tested; IATF 16949 & ISO 9001:2015 certified; 2-year warranty |
Why GASTAC Is the Supplier That Checks Every Box
Choosing the right gas spring supplier is crucial to ensuring the performance, reliability, and durability of your top-hung window system. As a leading Asian gas spring manufacturer, GASTAC provides comprehensive gas spring solutions for top-hung windows to window manufacturers, OEM customers, and distributors worldwide.
Below are the key reasons why GASTAC has become the preferred partner for customers seeking reliable gas strut awning window solutions:
- With a proven track record of serving over 100+ clients exclusively in the window industry, and establishing long-term partnerships with numerous leading brands.
- Factory scale with over 10,000 m² production facility and 100+ employees, including engineering, production, and quality control teams
- Compliance with international quality and safety standards (e.g., ISO certification)
- Production capacity of 50,000 gas struts for awning window every two weeks.
- Strict tolerance control for consistent force output across production batches (Error within 0.2%)
On-time delivery rate exceeding 98%, as verified by customer feedback.
Free samples are available for customer testing and validation (shipping costs apply).、
- Verified cycle life testing and durability performance reports
Reliable after-sales service and technical support for long-term cooperation
Final Thoughts on Choosing the Right Gas Struts Awning Window Suppliers
Contact GASTAC today to discuss your gas strut awning window project and discover a reliable solution tailored to your application. To help you find the exact replacement or part, could you tell me:
- What is the application? (e.g., RV window, truck canopy, kitchen cabinet, boat hatch).
- What is the force rating (N) or extended length printed on your current strut?
- Are you looking for a specific brand (like Suspa or Stabilus) or an affordable universal replacement?
