Are you currently searching for reliable window gas struts, or struggling to find a manufacturer that can truly meet your project’s technical specifications? Look no further. GASTAC is one of China’s most professional window gas strut manufacturers, delivering high-performance, precision-engineered, and fully customized gas spring solutions to a diverse range of global customers.
This guide will provide a complete overview of window gas struts, helping you understand their applications, selection factors, technical specifications, and customization options to choose the right solution for your needs.

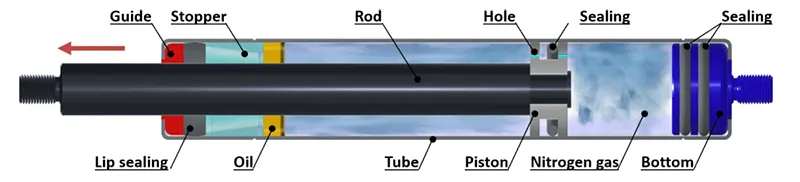

What Are Window Gas Struts?
Window gas struts are mechanical hardware components that use compressed nitrogen gas sealed inside a cylinder to make opening, supporting, and closing heavy windows effortless and controlled. Operating similarly to the hydraulic lifts on a car hatchback, they replace traditional hinges or manual window stays by absorbing the window’s weight. they allow heavy glass panels to glide open with a light push and secure them safely in place.
Key Benefits of Window Gas Struts in Various Window Applications
Window gas struts have revolutionized the way modern windows operate, offering a host of advantages that transcend traditional mechanical hinges, cranks, and friction stays. While their core function—controlled lifting and lowering—remains the same across applications, the specific benefits they deliver vary significantly depending on the window type and usage scenario.

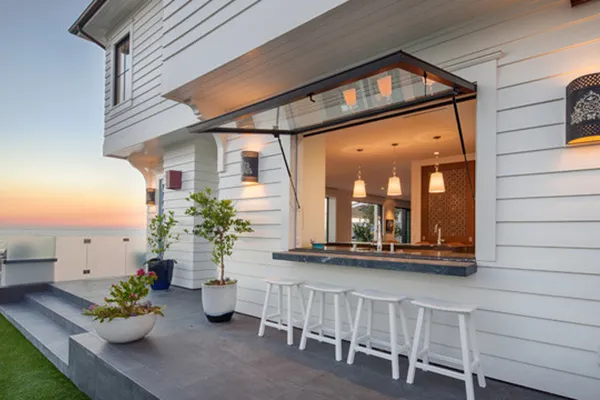

Kitchen Pass-Through and Servery Windows
In modern open-plan kitchens, pass-through windows serve as a bridge between indoor cooking spaces and outdoor dining or entertainment areas. These windows are typically large, heavy, and frequently operated—often multiple times per hour during meal preparation and social gatherings.
- Effortless One-Hand Operation: Counterbalances heavy 10–30 kg glass panels, allowing smooth, single-push opening.
- Hands-Free Holding: Securely locks the window at any position, keeping hands free for passing items.
- Controlled Soft-Close Damping: Prevents slamming to protect the glass and fingers.
- Sleek Aesthetic: Mounts discreetly to maintain clean, unobstructed sightlines.

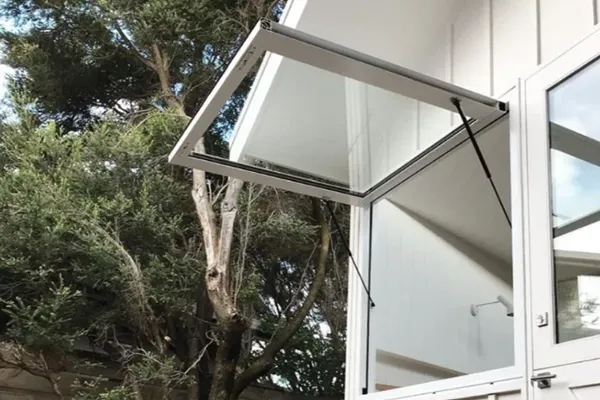

Awning and Casement Windows
Awning windows—hinged at the top and opening outward—and casement windows—hinged at the side—are staples in residential and commercial buildings, prized for their excellent ventilation and weather-tight sealing. Gas struts are increasingly replacing traditional manual crank mechanisms in these applications.
- Elimination of Complex Mechanisms: Replaces wear-prone hand cranks with a simplified design for lower maintenance and longer service life.
- Smooth, Silent Operation: Delivers consistently quiet, effortless movement without the stiffness associated with aging mechanical operators.
Multi-stage ventilation: Supports flexible opening angles, offering various modes ranging from minimal ventilation to full airflow.
- Improved Weather Resistance: Features corrosion-resistant shafts built to withstand rain, humidity, and coastal salt spray.

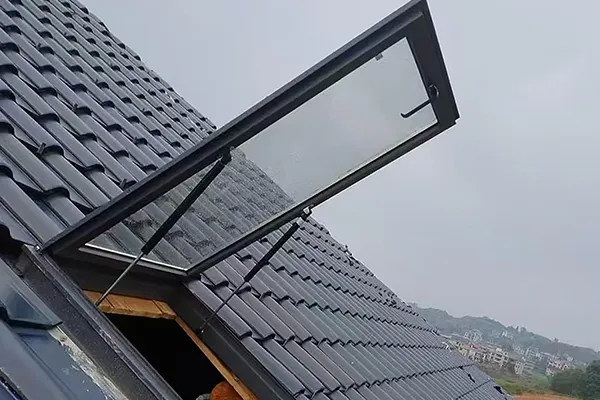

Roof Windows and Skylights
Roof windows and skylights present a unique challenge: they are installed at an angle, often overhead, making manual operation difficult. In addition, they are subject to direct rain, snow, and UV exposure, and a sudden uncontrolled drop poses a significant safety hazard.
- Overhead Accessibility: Effortlessly operates high skylights from floor level with a simple push from a pole or handle.
- Fail-Safe Holding Power: Features robust sealing and pressure retention to prevent sudden drop failures, ensuring safety in overhead applications.
- Protection Against Environmental Stress: Resists intense UV radiation, heavy rain, and extreme temperature fluctuations from -30°C to +80°C for year-round reliability.
- Energy Efficiency: Facilitates passive cooling by venting trapped summer heat, helping reduce air conditioning loads.
Industrial and Commercial Glazing Window
Large-scale commercial glazing—such as storefront windows, atrium ventilation panels, and factory clerestories—involves exceptionally heavy glass or polycarbonate panels. These applications demand gas struts with high force output, industrial-grade durability, and fail-safe performance in high-traffic public areas.
- High-Capacity Load Handling: Delivers forces exceeding 1,000 Newtons to easily operate heavy industrial panels weighing 50 kg or more.
- Fire-Rated & Safety-Compliant: Features steel cylinders and flame-resistant seals to meet strict commercial building codes.
- Reduced Maintenance: Replaces complex mechanical operators with low-wear components, significantly lowering long-term maintenance costs in large facilities.
- Enhanced Accessibility: Empowers occupants with limited strength or mobility to operate windows easily, supporting ADA and universal design compliance.

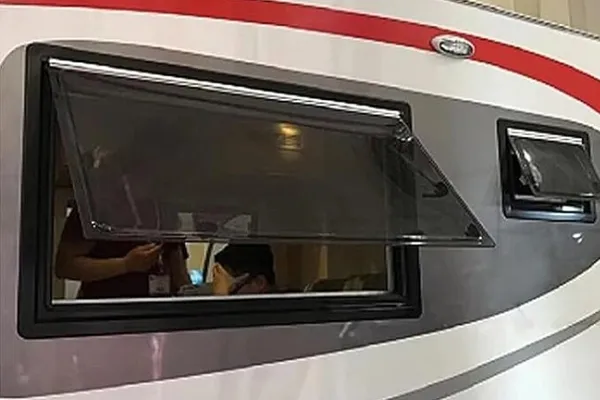

RV, Caravan, and Camper Windows
Recreational vehicles and caravans demand lightweight, durable, and vibration-resistant components that perform reliably on the move. Window gas struts in these applications must withstand constant road vibration, temperature extremes, and frequent operation in dusty or muddy environments.
- Vibration Resistance: Maintains consistent tension and holding force through thousands of miles of rough road travel without loosening.
- Space Efficiency: Features a compact design that mounts neatly within the frame to save interior space.
- Quick, Single-Hand Operation: Allows for effortless, one-handed opening when setting up camp.
- Dust & Debris Sealing: Utilizes sealed cylinders to prevent dust, sand, and moisture ingress in off-road environments.
Signs That Window Gas Struts Need Replacement
Although window gas struts are designed for long-term and reliable performance, they may gradually lose their effectiveness due to continuous use, environmental exposure, or incorrect selection. Identifying the early signs of failure can help prevent safety risks, reduce maintenance costs, and ensure smooth window operation. Here are the most common signs that your window gas struts may need replacement:
The window cannot stay open – The gas strut no longer provides enough support force to hold the window in position.
Slow or difficult operation – The window becomes harder to open, close, or adjust.
- Oil leakage or visible damage – Leakage, corrosion, bent rods, or damaged fittings indicate the gas strut may have failed.
- Unusual noises during operation – Clicking, grinding, or uneven movement may suggest internal wear.
- Reduced lifting assistance – The window feels heavier than before and requires more manual effort.
- Rust or corrosion – Especially common in outdoor or marine applications.
- Reduced service life performance – Gas struts that have been used for many years or many operating cycles may need replacement.
Process to Choose the Appropriate Window Gas Struts
Selecting the right window gas struts is essential to ensure smooth operation, reliable support, and long-term performance. The correct selection process should consider the window design, operating conditions, and technical specifications. The main steps include:
- Application Needs – Identify window type, environment, and operating conditions (residential, RV, marine, or industrial).
- Environment Evaluation – Choose material and surface finish suited to outdoor, marine, or high-humidity settings.
- Key Measurements – Confirm extended length, stroke, cylinder Ø, and rod Ø based on window size and mounting.
- Force Calculation – Determine rated force (N) based on sash weight, dimensions, mounting, and lift assistance required.
- Mounting Accessories – Select appropriate stamped components and end fittings for the mounting structure.
- Custom Services – Specify any branding, logo, or packaging requirements.
GASTAC Windw Gas Struts Specifications
As a dedicated window gas strut manufacturer, GASTAC combines a comprehensive product lineup, advanced customization capabilities, and deep engineering expertise to meet 99% of window gas spring requirements.
Whether you already know your exact requirements or need assistance with the calculation, we make the selection process seamless:
GASTAC Window Gas Struts Size Chart
If you know the specific specifications required, please browse the complete technical specifications table below to select the window gas struts suitable for your project.
| Product Series | Rod Diameter | Tub Diameter | Stroke | Extended Length | Thread Type | Force |
|---|---|---|---|---|---|---|
| 6-15W | 6mm | 15mm | 30 - 215mm | 130 - 500mm | M6X1.0 | 50 - 400N |
| 8-18W | 8mm | 18mm | 50 - 365mm | 175 - 800mm | M6X1.0 | 50 - 700N |
| 10-22W | 10mm | 22mm | 60 - 555mm | 195 - 1200mm | M8X1.25 | 50 - 1200N |
| 14-28W | 14mm | 28mm | 60 - 555mm | 195 - 1200mm | M10X1.25 | 50 - 2200N |
Customer Windows Size Chart
If you are unsure about the window gas strut parameters: Simply provide your window dimensions, weight, and opening angles using our parameter guide, and our engineering team will calculate and match the precise gas strut specifications for you.
| Custom Gas Strut Windows | Gas Strut Awning Window 36″W x 36″H | Gas Strut Awning Window 42″W x 36″H | Gas Strut Awning Window 42″W x 42″H | Gas Strut Awning Window 48″W x 36″H |
| Gas Strut Awning Window 48″W x 42″H | Gas Strut Awning Window 48″W x 48″H | Gas Strut Awning Window 54″W x 36″H | Gas Strut Awning Window 54″W x 42″H | Gas Strut Awning Window 54″W x 48″H |
| Gas Strut Awning Window 54″W x 54″H | Gas Strut Awning Window 60″W x 36″H | Gas Strut Awning Window 60″W x 42″H | Gas Strut Awning Window 60″W x 48″H | Gas Strut Awning Window 60″W x 54″H |
| Gas Strut Awning Window 60″W x 60″H | Gas Strut Awning Window 72″W x 36″H | Gas Strut Awning Window 72″W x 42″H | Gas Strut Awning Window 72″W x 48″H | Gas Strut Awning Window 72″W x 54″H |
| Gas Strut Awning Window 72″W x 60″H | Gas Strut Awning Window 72″W x 72″H | Gas Strut Awning Window 84″W x 60″H | Gas Strut Awning Window 96″W x 60″H | Gas Strut Awning Window 120″W x 60″H |

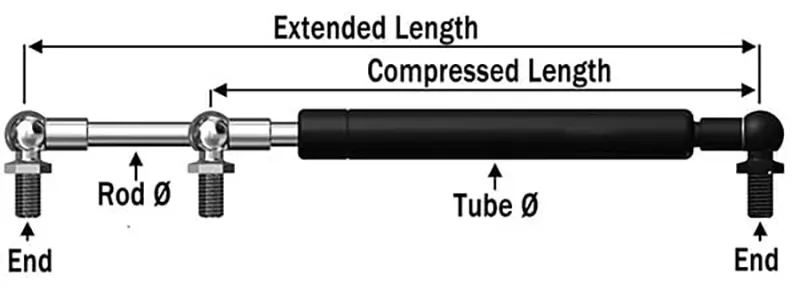

How to Measure Window Gas Struts?
Accurate measurement is essential when replacing or selecting window gas struts. Incorrect dimensions may result in poor fitting, insufficient support force, or improper window operation. Before ordering new window gas struts, make sure to measure the following key specifications:
- Extended Length – Fully extend the strut and measure center-to-center between mounting points.
- Compressed Length – Fully compress the strut and measure center-to-center to ensure it fits when closed.
- Stroke Length – Stroke = Extended Length – Compressed Length. Determines the window opening angle.
- Force Rating (N) – Check the marking on the existing strut (e.g., 200N). If unreadable, calculate based on window weight and mounting position.
- Tube and Rod Diameter – Measure the cylinder and piston rod diameters to match the original design.
- End Fittings and Mounting Type – Confirm the type and size of brackets, ball sockets, or other connectors for proper installation.
High Performance Cost-Effective GASTAC Window Gas Struts
Why the quality of GASTAC window gas struts is recognized by a wide range of customers? When sourcing window gas struts, customers often face the challenge of balancing quality, performance, and cost. GASTAC provides the ideal solution by combining precision engineering, advanced manufacturing processes, and efficient production capabilities to deliver reliable, high-performance window gas struts at competitive prices.
Here are the key advantages that make GASTAC window gas struts a reliable and cost-effective choice:
- Use high-strength carbon steel and precision seamless steel tubing for cylinder construction.
- High-quality piston rod with hard chrome plating for wear and corrosion resistance.
- Cycle life tested up to 50000 cycles or more under full load conditions.
- The open and closed states are stable, and operation is effortless and safe.
- Passes salt spray test exceeding 144 hours.
GASTAC Professional Window Gas Strut Manufacturer in China
Beyond product quality, choosing the right window gas strut manufacturer is equally important for ensuring stable supply, consistent performance, and long-term cooperation. With advanced manufacturing capabilities, professional engineering support, and extensive industry experience, GASTAC provides reliable window gas strut solutions for customers worldwide.
The following are the key advantages that have earned GASTAC Window Gas Struts manufacturer the trust of its customers:
- Factory scale with over 3,000 m² production facility and 100+ employees, including engineering, production, and quality control teams
- Compliance with international quality and safety standards (e.g., ISO certification)
- Production capacity of 5,000 window gas struts every two weeks.
- Strict tolerance control for consistent force output across production batches (Error within 0.2%)
- Verified cycle life testing and durability performance reports
- Reliable after-sales service and technical support for long-term cooperation.
Highly Persuasive Customer Testimonials for GASTAC Window Gas Struts
Real feedback from our global partners — their success speaks for our commitment
Final Thoughts on Choosing the Right Window Gas Struts Suppliers
As a professional window gas strut manufacturer in China, GASTAC combines advanced manufacturing technology, strict quality control, and customized engineering support to provide reliable gas spring solutions for customers worldwide. Whether you need standard window gas struts for replacement applications or fully customized solutions for OEM projects, GASTAC has the expertise and production capability to meet your requirements.
Contact GASTAC today to discuss your window gas strut project and discover a reliable solution tailored to your application. To help you find the exact replacement or part, could you tell me:
- What is the application? (e.g., RV window, truck canopy, kitchen cabinet, boat hatch).
- What is the force rating (N) or extended length printed on your current strut?
- Are you looking for a specific brand (like Suspa or Stabilus) or an affordable universal replacement?
