Heavy duty gas springs are high-force gas struts that use compressed nitrogen to provide controlled lifting and support for heavy loads. Common applications include commercial vehicles, construction machinery, agricultural equipment, and industrial machinery. These heavy duty gas struts feature robust construction and corrosion-resistant finishes, with customizable force ratings, stroke lengths, mounting dimensions, and end fittings.

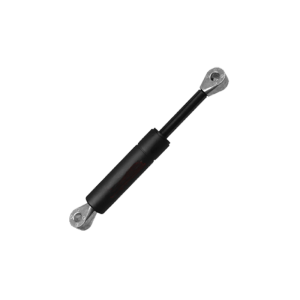

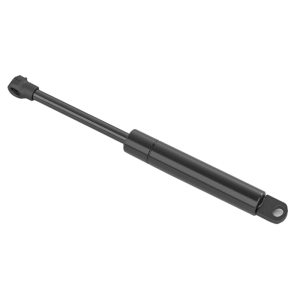

Heavy Duty Gas Struts
Popular Heavy Duty Gas Strut Sizes & Specifications
GASTAC heavy duty gas springs are available in four rod/tube diameter configurations: 6/15 mm, 8/18 mm, 10/22 mm, and 14/28 mm. The table below features selected popular models, with stroke lengths, extended lengths, and available force ranges to help buyers compare specifications and find suitable options for their applications.

| GASTAC Code | Rod Diameter | Tube Diameter | Stroke | Extended Length | Force Range (N / lbf) |
|---|---|---|---|---|---|
| GTQ3008137810191 | 10 mm | 22 mm | 13.78 in (350 mm) | 30.08 in (764 mm) | 50–1,100 N (11.2–247.3 lbf) |
| GTQ5756275610202 | 10 mm | 22 mm | 27.56 in (700 mm) | 57.56 in (1462 mm) | 50–1,100 N (11.2–247.3 lbf) |
| GTQ615295310180 | 10 mm | 22 mm | 29.53 in (750 mm) | 61.5 in (1562 mm) | 50–1,100 N (11.2–247.3 lbf) |
| GTQ3787177214438 | 14 mm | 28 mm | 17.72 in (450 mm) | 37.87 in (962 mm) | 150–2,200 N (33.7–494.6 lbf) |
| GTQ4181196914360 | 14 mm | 28 mm | 19.69 in (500 mm) | 41.81 in (1062 mm) | 150–2,200 N (33.7–494.6 lbf) |
| GTQ4575216514303 | 14 mm | 28 mm | 21.65 in (550 mm) | 45.75 in (1162 mm) | 150–2,200 N (33.7–494.6 lbf) |
| GTQ4969236214259 | 14 mm | 28 mm | 23.62 in (600 mm) | 49.69 in (1262 mm) | 150–2,200 N (33.7–494.6 lbf) |
| GTQ5362255914225 | 14 mm | 28 mm | 25.59 in (650 mm) | 53.62 in (1362 mm) | 150–2,200 N (33.7–494.6 lbf) |
| GTQ64619714292 | 14 mm | 28 mm | 1.97 in (50 mm) | 6.46 in (164 mm) | 150–2,200 N (33.7–494.6 lbf) |
| GTQ103939414292 | 14 mm | 28 mm | 3.94 in (100 mm) | 10.39 in (264 mm) | 150–2,200 N (33.7–494.6 lbf) |
| GTQ143359114292 | 14 mm | 28 mm | 5.91 in (150 mm) | 14.33 in (364 mm) | 150–2,200 N (33.7–494.6 lbf) |
| GTQ182878714292 | 14 mm | 28 mm | 7.87 in (200 mm) | 18.28 in (464 mm) | 150–2,200 N (33.7–494.6 lbf) |
| GTQ22298414292 | 14 mm | 28 mm | 9.84 in (250 mm) | 22.2 in (564 mm) | 150–2,200 N (33.7–494.6 lbf) |
Note: Force ranges indicate available force customization for each rod/tube diameter series. Force tolerance is ±15 N for force ratings below 500 N and ±20 N for force ratings above 500 N. For force ratings of exactly 500 N, please confirm the applicable tolerance with our engineering team. Final specifications are subject to technical confirmation.
Customization Options
Custom Heavy Duty Gas Strut Solutions
Explore customized sealing components and safety locking options for heavy duty gas struts. Contact GASTAC to discuss your application requirements.
Safety Locking Shroud
Mechanical locking options for secure open-position support.
A mechanical locking mechanism helps hold the gas spring in its extended position until manually released. This option can provide additional security for applications where raised covers or panels need to remain open.
High-Temperature Seal Customization
Seals and related components for demanding operating conditions.
Customized sealing components are available for high-temperature applications. Seal materials and related components can be discussed according to the required operating conditions.
Seal Material Options
Discuss suitable sealing materials based on the operating temperature and application requirements.
Related Component Customization
Review additional sealing components and configuration requirements with our team.
Looking for a Custom Gas Strut Solution?
Share your operating conditions and technical requirements with GASTAC to discuss suitable customization options.
GASTAC Factory Advantages
With over 20 years of gas spring manufacturing and export experience, GASTAC has become a trusted partner for engineers, OEM buyers, and distributors in more than 50 countries. Our factory combines automated production lines, in-house testing laboratories, and a dedicated engineering team to deliver consistent quality, fast lead times, and full customization — from a single sample to mass production.
ISO 9001 Certified Quality
Manufactured under ISO 9001 quality system and compliant with RoHS and REACH. Every batch is tested for force accuracy, stroke, and seal integrity before shipment.
Full Customization
Custom force ranges are available according to the selected rod/tube diameter series and application requirements. Stroke, extended length, thread type, end fittings, and materials including SS304 and SS316L can also be customized. Send us your drawing and we will quote within 24 hours.
Fast & Reliable Delivery
Stock models ship in 3–5 working days. Mass production lead time is 15–25 working days. Worldwide shipping by express, air, or sea with full export documentation.
Engineering Support
Free selection assistance, 2D PDF drawings and 3D STEP models for all standard models. Our engineers help you choose the right force, stroke, and fittings for your application.
Reliability Tested
Every model is cycle tested to 100,000+ strokes and salt spray tested from 96 to 1000+ hours. Test reports are available upon request.
100% Inspection Before Shipment
Each gas spring is individually checked for force, stroke, and seal integrity before packing. No batch sampling — every unit is verified.
