Adjustable Standing Desk Converter & Workstations for Ergonomic and Flexible Office

Ergonomic Health Benefits

Promotes better posture by allowing easy transitions between sitting and standing, helping reduce back, neck, and shoulder fatigue while improving daily comfort and productivity.

Smooth Flexible Height Adjustment

Built with a reinforced steel frame and high-quality materials, ensuring strong load capacity, long-term durability, and stable performance during frequent height adjustments.

Space-Saving Workstation Solution

Wide desktop design provides ample room for monitors, laptops, and accessories, while the scratch-resistant coating keeps the surface smooth, clean, and professional-looking.

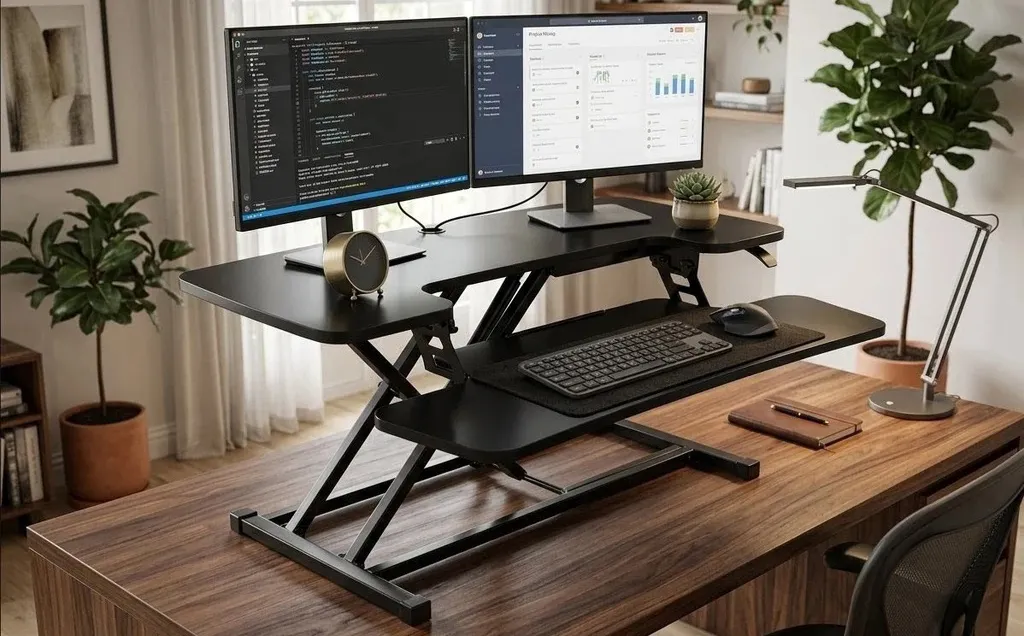

The GASTAC standing desk converter transforms any fixed-height desk into an ergonomic sit-stand workstation in seconds. No desk replacement. No power required.

At its core are GASTAC’s self-developed locking gas springs – the same precision components we manufacture for industrial and medical applications. We don’t buy off-the-shelf gas springs; we engineer them in-house to match the exact lifting profile, load distribution, and damping characteristics of each converter model. This means smoother lift, zero drift at any height, and consistent performance across 50000 cycles.

As both the locking gas spring manufacturer and the standing up desk converter manufacturing factory, we offer complete OEM/ODM services – from force calculation and mechanism design to finished product packing. One supplier, one specification sheet, one quality standard.

​​ Adjustable Standing Desk Converter

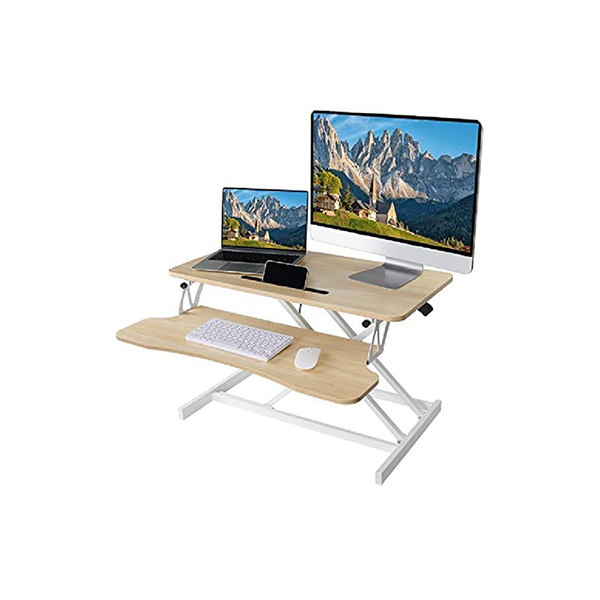

Height Adjustable Desk Converter

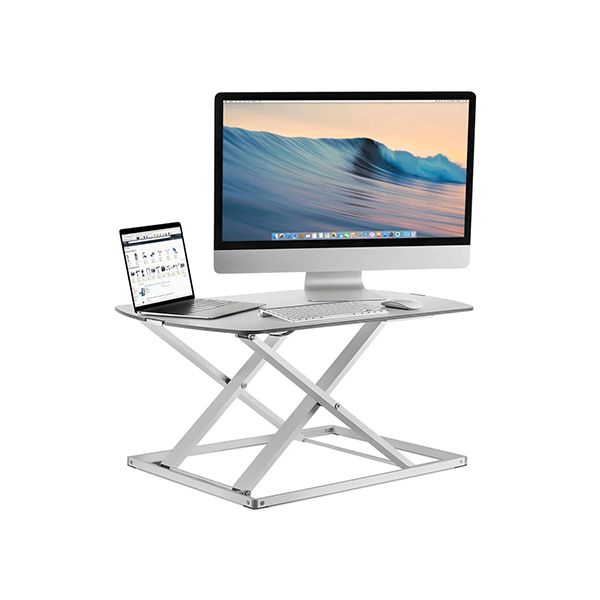

Stand Up Desk Converter Laptop

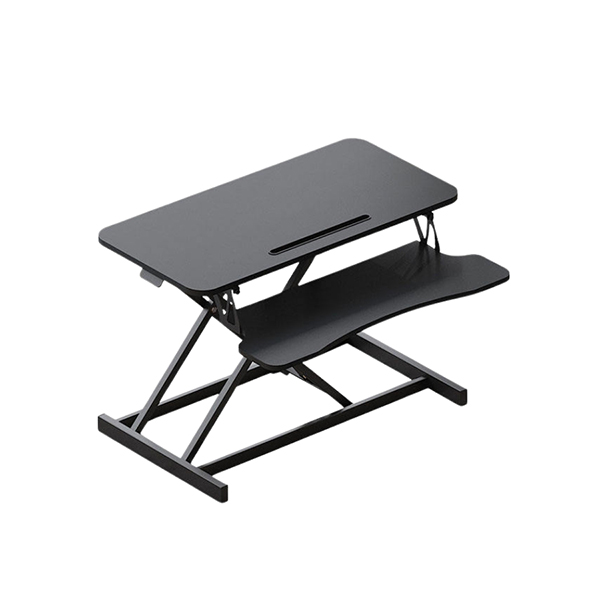

Adjustable Stand Up Desk Converter

Height Adjustable Workstation

Standing Computer Workstation

Sit Stand Desktop Workstation

GASTAC​​​ Standing Desk Converter Advantages

GASTAC design and production standing desk converter is engineered for users who want ergonomic flexibility without replacing their existing furniture. Below are the key design and performance features that distinguish this model.

Stable Dual-Platform Architecture

The converter features two tiered platforms – a lower keyboard tier and an elevated monitor tier. This separated design keeps screens at proper eye level while maintaining a comfortable typing angle. Both platforms are constructed from 15mm high-density fiberboard with a scratch-resistant, anti-slip surface that secures equipment during height changes.

Quiet, Power-Free Lifting Mechanism

Powered entirely by GASTAC’s in-house locking gas springs, the converter lifts smoothly without motors, batteries, or electrical cords. The lift is near-silent – ideal for open-plan offices, hot-desking environments, and shared workspaces where noise is a concern.

Secure C-Clamp Mounting System

The converter attaches to any existing desk via a heavy-duty C-clamp that fits desktop thicknesses from 20mm to 60mm. The clamp is lined with protective pads to prevent surface marks, and includes a quick-release lever for easy installation or relocation. For workstations with limited edge space, a pass-through grommet mount option is also available.

Wide Height Range for Multiple User Heights

With an adjustment range of 110mm to 450mm above the existing desk surface, this converter accommodates users from approximately 155cm to 195cm tall. The full lift range is accessible with a single trigger pull – no re-positioning or multiple adjustments needed.

One-Touch Height Adjustment with Damped Descent

Height adjustment is activated by a single trigger handle located on the right side of the keyboard platform. Pulling the trigger releases the gas spring, allowing the platform to rise with minimal effort. When lowering, the built-in hydraulic damping system controls the descent speed – preventing sudden drops and protecting monitors and peripherals from impact.

Compatibility with Most Monitor Setups

The monitor platform supports single monitors up to 32″ or dual monitors up to 27″ each, with a total weight capacity of 15kg on the monitor tier and 5kg on the keyboard tier. The platform surface includes pre-drilled cable management slots to route wires neatly and maintain a clean appearance.

Locking Gas Springs – Designed & Manufactured by GASTAC

The lifting performance of a standing desk converter is entirely determined by its gas spring system. GASTAC is one of the few converter suppliers that designs and produces its own locking gas springs – giving us full control over force accuracy, damping curve, and long-term reliability.

Locking Gas Spring Specifications

  • Cylinder Diameter: Φ18mm / Φ22mm (selected based on platform load)

  • Rod Diameter: Φ8mm / Φ10mm

  • Standard Stroke: 60mm – 250mm (customizable per height range)

  • Force Range: 150N – 600N (precisely matched to keyboard + monitor load)

  • Locking Mechanism: Trigger release / Button release (depending on converter design)

  • Rod Surface Finish: Hard chrome-plated, salt spray test ≥72 hours

Why GASTAC Gas Springs Deliver Superior Converter Performance

  • n-house force calibration: each gas spring is filled and tested in our own facility, with force tolerance held to ±5% – tighter than the industry standard of ±10%.

  • Precision damping control: we tune the internal oil and gas ratio to achieve a controlled descent speed (recommended: 15–25mm/s), preventing sudden drops that can damage equipment.

  • Sealing system: imported Viton® seals ensure leak-free performance across a wide temperature range (-20°C to +60°C).

  • Cycle life verified: independently tested to ≥50,000 lifting cycles with <5% force degradation.

Locking Gas Springs Custom Engineering Support

If your converter design requires a non-standard lift height, platform load, or release mechanism, GASTAC can re-calculate the gas spring force curve and modify stroke, cylinder diameter, or end fittings accordingly. This is not a catalog product – we co-develop the solution with your engineering team.

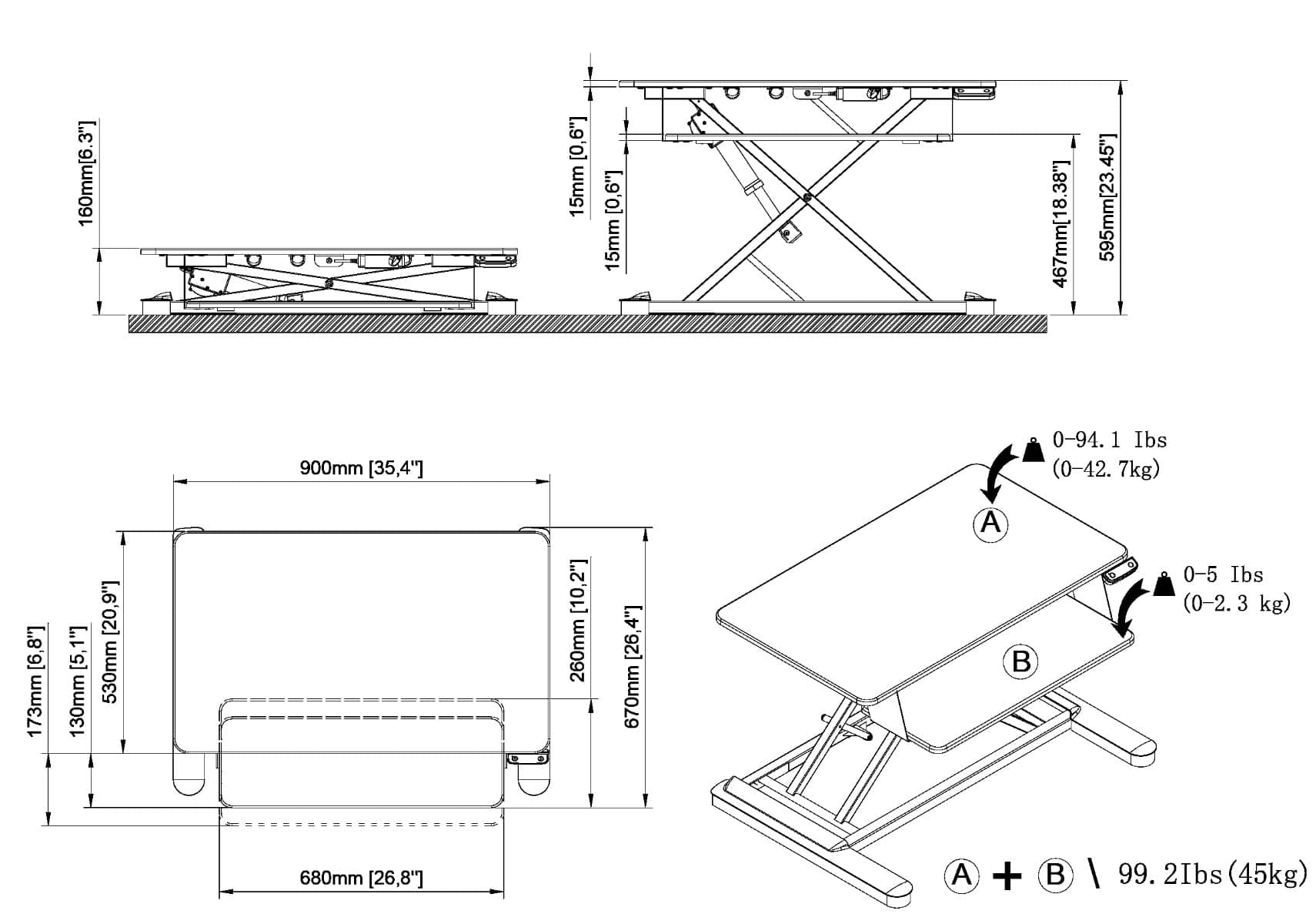

Complete Standing Desk Converter Specifications

  • Platform Dimensions (W×D) – Keyboard Tier: 800×300mm / 900×350mm (custom sizes available)
  • Platform Dimensions (W×D) – Monitor Tier: 800×250mm / 900×280mm (custom sizes available)
  • Height Adjustment Range (from desktop surface): 110mm – 450mm |
  • Maximum Recommended Load – Keyboard Tier: 5kg (keyboard + mouse + small accessories)
  • Maximum Recommended Load – Monitor Tier: 15kg (single or dual monitors up to 27″)
  • Total Dynamic Load Capacity: 20kg (with Φ22mm gas spring) / 12kg (with Φ18mm gas spring)
  • Desktop / Platform Material: High-density fiberboard (HDF), 15mm thickness, with anti-slip mat
  • Frame Material: Cold-rolled steel SPCC, main arms 2.0mm wall thickness
  • Surface Finish: Electrostatic powder coating – RAL 9016 (white) / RAL 9005 (black) / RAL 7042 (grey) optional
  • Lift Activation: Single-touch trigger handle (right-hand side)
  • Descent Control: Hydraulic damping – controlled descent speed (adjustable)
  • Base / Clamp Type: C-clamp (fits desktop thickness 20–60mm) / Pass-through grommet mount optional
  • Product Net Weight: Approx. 8.5kg (for 900×350mm size)
  • Packing Dimensions (per unit): 950×400×140mm
  • Packing Method: Molded EPS foam + reinforced carton (export-worthy)

Note: Platform dimensions, gas spring force curve, and mounting style are all available for non-standard customization. See Customization Services section below.

OEM / ODM Customization Capabilities – For Converter Products

As both a gas spring manufacturer and a finished standing desk riser assembler, GASTAC offers a unique level of customization that pure assembly factories cannot match.

Locking Gas Spring Customization

  • Force-Travel Curve: Customized to match your platform weight, monitor count, and desired lift feel (light-touch vs. firm)

  • Stroke Adjustment: 60mm–150mm range, tailored to your target lift height

  • End Fittings & Brackets: Designed per your mechanism – we can produce custom clevis, ball joint, or threaded stud ends

  • Release Mechanism Interface: Adaptable to trigger, button, or lever activation

  • Color: Cylinder powder-coated to RAL code (batch-dependent)

Complete Sit Stand Desk Converter Customization

  • Platform Dimensions: Any width/depth within our fabrication capability (typical range: 600–1200mm width)

  • Platform Material & Finish: HDF, bamboo, MDF with melamine, anti-slip mat options

  • Frame Color: Any RAL color (batch orders ≥100 units)

  • Mounting Type: C-clamp, grommet mount, or fixed base – configurable

  • Branding: Silk-screen logo on frame or platform; custom packaging with your brand (MOQ applies)

Co-Development Service for New Converter Designs

If you are developing a new standing desk converter model and need a gas spring system that fits your unique geometry, GASTAC can collaborate from the prototyping stage. We provide:

  • Force requirement calculation based on your CAD model

  • Sample gas springs for your prototype (3–5 pcs)

  • Adjustments after your mechanical testing

  • Ramp-up to full production with consistent quality

This is not a “picking from a catalog” service – GASTAC engineer the gas spring to your converter, not the other way around.

Frequently Asked Questions

Most models support 30–35 kg, suitable for monitors, laptops, and accessories.

Many models feature a lower keyboard tray, usually 50–90 cm wide and 25–35 cm deep.

Yes, check the weight capacity and surface size to ensure proper fit for dual setups.

Minimal assembly is needed, typically just attaching the keyboard tray and platform.

Most products offer 1–3 years warranty and responsive customer support.

Minimal maintenance—periodic tightening of screws and keeping the surface clean.

Why Choose GASTAC

With unmatched quality, competitive pricing, complete pre- and after-sales support, and fast, secure delivery, GASTAC has become one of the world’s leading manufacturers of gas spring–based solutions.
