Tension Gas Springs – Reliable Pulling Force for Controlled Motion
Easy To Install & Maintain, Extends Life
Standard fittings and custom end connectors simplify installation, reduce mechanical wear, and ensure long-lasting, stable performance.
Compact & Powerful Pull Force
Controlled pulling power in a compact form ensures smooth, precise motion in tight spaces while maintaining reliability during continuous use.
Smooth & Controlled Retraction
Engineered for smooth, consistent retraction while minimizing noise and vibration, ensuring stable, silent operation and enhanced user comfort.

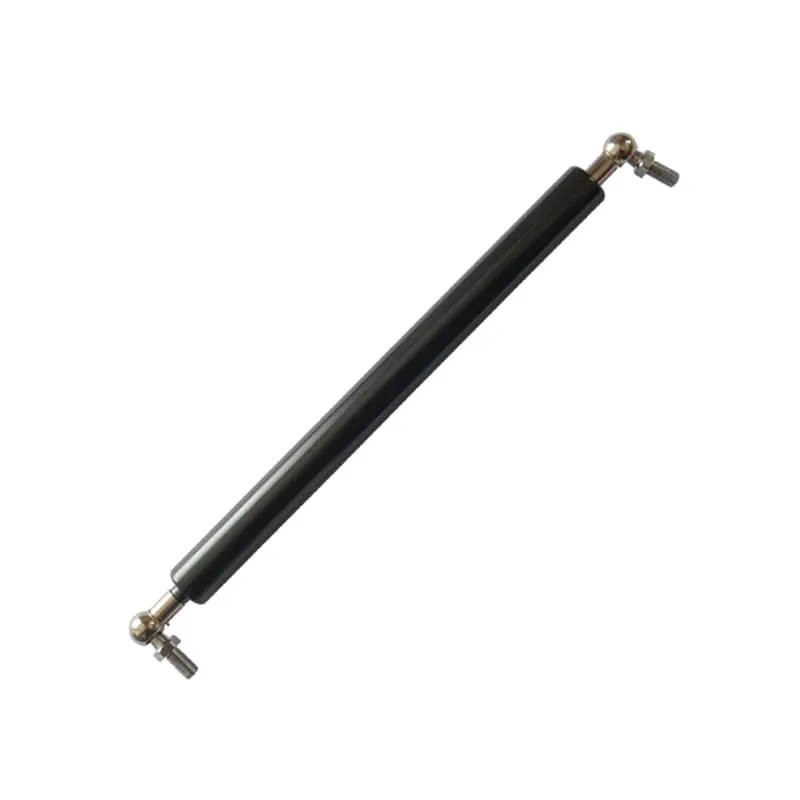

Tension gas springs, also known as pull type gas springs or reverse-acting gas struts, retract the piston rod to produce a controlled pulling force—the opposite of a standard compression gas spring. As a professional gas spring manufacturer since 2007, GASTAC supplies standard and custom solutions for limited spaces and mounting arrangements that require a pulling rather than pushing action. Our tension gas springs are used on bottom-hinged doors and access panels, covers and lids that must be pulled open or closed, and mechanical assemblies or belt drives that require controlled tension.
Tension Gas Springs

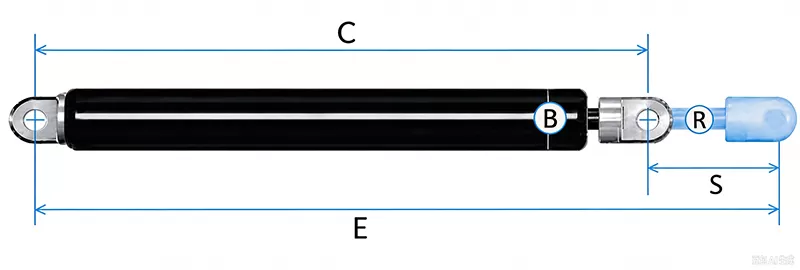

Tension Gas Springs Specifications

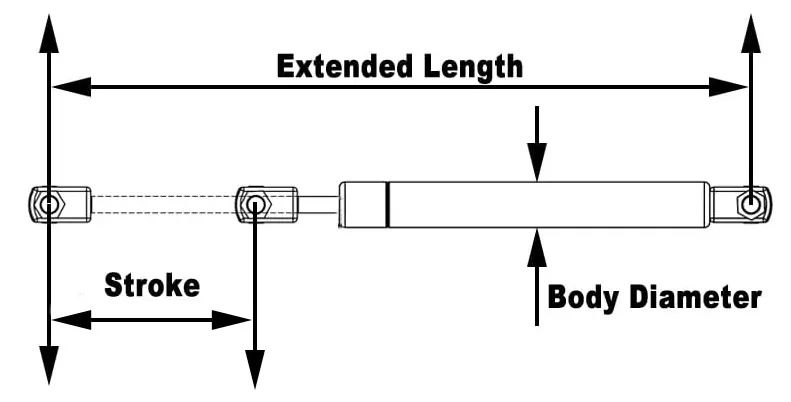

When selecting or replacing a gas spring, it is important to measure the key dimensions accurately. Start with the Rod Diameter and Body Diameter, which determine the strength and load capacity of the gas spring. Next, measure the Stroke, which is the distance the rod can travel between the fully compressed and fully extended positions. Finally, record the Extended Length, which is the total length of the gas spring from the center of one end fitting to the other when fully extended. By following these steps, you can ensure the correct specifications for your application and achieve reliable performance.
10-22 Tension Gas Springs
| GASTAC Code | Stroke Length (mm) | Extended Length (mm) | Compressed Length (mm) | Rod/BodyDiameter (mm) | Force Range F1 (N) | IGS Cross Reference |
| GTL102257156 | 57.15 mm (2.25 in) | 155.96 mm (6.14 in) | M8x1.25 | 10/22 | 25-300 lbs | 1CT057154TT |
| GTK102276219 | 76.20 mm (3 in) | 219.46 mm (8.64 in) | M8x1.25 | 10/22 | 25-300 lbs | 1CT076218TT |
| GTK102289270 | 88.90 mm (3.50 in) | 270.26 mm (10.64 in) | M8x1.25 | 10/22 | 25-300 lbs | 1CT089268TT |
| GTK1022140346 | 139.70 mm (5.50 in) | 346.46 mm (13.64 in) | M8x1.25 | 10/22 | 25-300 lbs | 1CT140345TT |
| GTK1022152397 | 152.40 mm (6 in) | 397.26 mm (15.64 in) | M8x1.25 | 10/22 | 25-300 lbs | 1CT153396TT |
| GTK1022203473 | 203.20 mm (8 in) | 473.46 mm (18.64 in) | M8x1.25 | 10/22 | 25-300 lbs | 1CT203472TT |
| GTK1022254569 | 254.00 mm (10 in) | 568.96 mm (22.40 in) | M8x1.25 | 10/22 | 25-300 lbs | 1CT254567TT |
| GTK1022317711 | 317.50 mm (12.50 in) | 711.20 mm (28 in) | M8x1.25 | 10/22 | 25-300 lbs | 1CT318711TT |
14-28 Tension Gas Springs
| GASTAC Code | Stroke Length (mm) | Extended Length (mm) | Compressed Length (mm) | Rod/BodyDiameter (mm) | Force Range F1 (N) | Ameritool Cross Reference |
| GTL142857207 | 2.25 (57.15) | 8.15 (207.01) | 5.9 (149.86) | 14/28 | 25-350 (111-1557) | 1100-2 |
| GTL1428107308 | 4.25 (107.95) | 12.15 (308.61) | 7.9 (200.66) | 14/28 | 25-350 (111-1557) | 1100-4 |
| GTL1428158410 | 6.25 (158.75) | 16.15 (410.21) | 9.9 (251.46) | 14/28 | 25-350 (111-1557) | 1100-6 |
| GTL1428209511 | 8.25 (209.55) | 20.15 (511.81) | 11.9 (302.26) | 14/28 | 25-350 (111-1557) | 1100-8 |
| GTL1428260613 | 10.25 (260.35) | 24.15 (613.41) | 13.9 (353.06) | 14/28 | 25-350 (111-1557) | 1100-10 |
| GTL1428311715 | 12.25 (311.15) | 28.15 (715.01) | 15.9 (403.86) | 14/28 | 25-350 (111-1557) | 1100-12 |
| GTL1428361816 | 14.25 (361.95) | 32.15 (816.61 | 17.9 (454.66) | 14/28 | 25-350 (111-1557) | 1100-14 |
| GTL1428412918 | 16.25 (412.75) | 36.15 (918.21) | 19.9 (505.46) | 14/28 | 25-350 (111-1557) | 1100-16 |
| GTL14285141121 | 20.25 (514.35) | 44.15 (1121.41) | 23.9 (607.06) | 14/28 | 25-350 (111-1557) | 1100-20 |
| GTL14286151324 | 24.25 (615.95) | 52.15 (1324.61) | 27.9 (708.66) | 14/28 | 25-350 (111-1557) | 1100-24 |
Custom Tension Gas Springs to Fit Your Application
GASTAC offers custom tension gas springs and pull-type gas struts with selectable materials, dimensions, and force—custom specs available on request.
