Cabinet Gas Struts Manufacturer for OEM Furniture Door

Easy & Effortless Operation

Cabinet gas struts provide smooth, controlled motion, making doors easier to lift and close while protecting hinges and cabinet structure.

Safety & Protection

Each cabinet door gas strut prevents doors from slamming, enhancing safety for users, especially children.

Versatile Applications

Gas struts for cabinets work with kitchen cupboards, office storage, and RV compartments, ensuring stable, quiet support for doors and lids.

GASTAC is a leading manufacturer of cabinet gas springs, offering a comprehensive product range, customization capabilities, and advanced engineering to meet the cabinet gas spring needs of 99% of its customers. Our cabinet gas springs are designed for global OEM customers, providing smooth lifting, controlled opening, and safe closing of cabinet doors, furniture panels, and storage boxes.

Whether you need a soft-close gas spring for a lightweight plywood door or a heavy-duty solution for solid wood cabinets, GASTAC offers force ranges from 20N to 300N with fully customizable dimensions. Browse our specifications below to find the perfect match, or contact our team for custom configurations tailored to your cabinet design.

​ Cabinet Gas Struts

Cabinet gas struts are compact yet powerful devices designed to control the lifting, holding, and closing of cabinet doors and lids. Filled with compressed nitrogen gas, each cabinet gas strut uses a piston-and-rod system that ensures effortless operation and long-term reliability. By reducing the effort needed to open or close doors, cabinet gas struts help prevent sudden slamming and extend the life of your furniture.

Whether used for kitchen cabinet gas struts, rv cabinet,cabinet door, toy box or overhead compartments, these components provide smooth and quiet motion. Their secure holding feature allows doors to stay open safely until gently pulled down, making them a must-have for modern home and office cabinetry.

Vérins à gaz pour armoires de cuisine

Kitchen Cabinet Gas Struts

Charnières à Gaz pour Meubles

Gas Hinges For Cabinets

Vérins de Levage pour Meubles

Cabinet Lift Supports

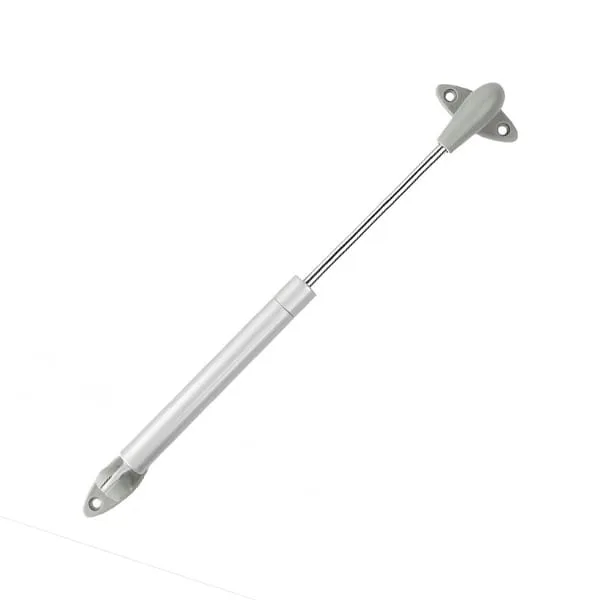

Vérin Hydraulique pour Meuble de Cuisine

Hydraulic Lift for Kitchen Cabinet

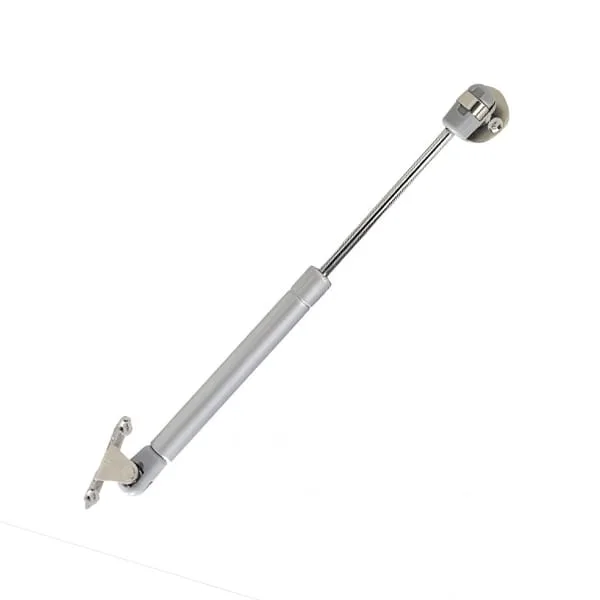

Vérins à Gaz pour Portes de Meubles

Cabinet Door Gas Struts

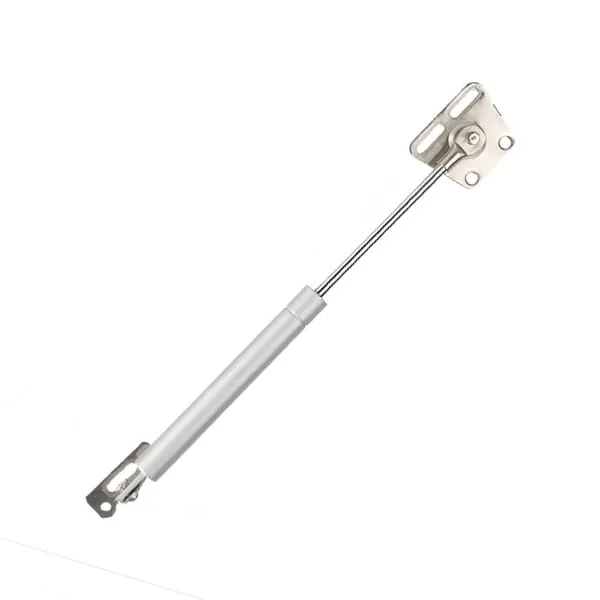

Vérins à Gaz pour Meubles

Cabinet Gas Springs

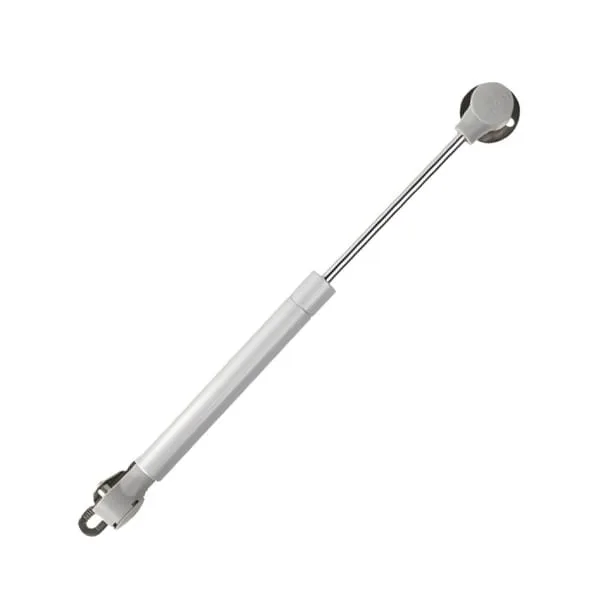

Kitchen Cupboard Gas Struts

Kitchen Cupboard Gas Struts

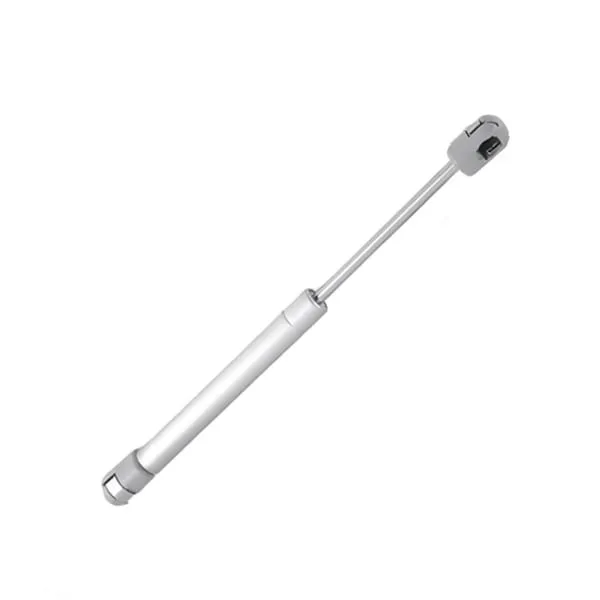

Cabinet Door Lift Support

Cabinet Door Lift Supports

Gas struts for heavy lid

Gas Struts for Heavy Lid

Cabinet Gas Struts Core Technical Specifications

In GASTAC’s official technical sizing chart, cabinet gas strut is primarily driven by the Rod-to-Tube Ratio, Stroke Travel, and Newton Force (N):

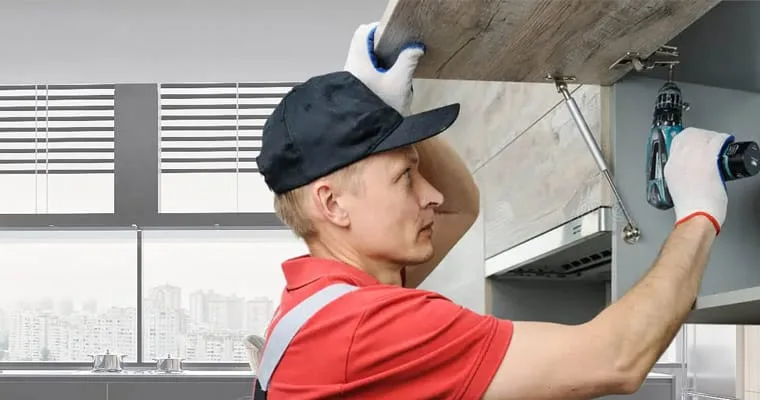

Cabinet Gas Struts 4
  • Primary Cabinet Size (6-15 Series): Featuring a 6 mm piston rod and a 15 mm cylinder tube diameter. This compact profile is engineered specifically for lightweight furniture, toolboxes, and residential overhead cabinetry.
  • Extended Length (Center-to-Center): Typically ranges from 150 mm to 300 mm (Approx. 6 to 12 inches). The universal 10.5-inch (approx. 270 mm) lift support is GASTAC’s top-selling specification for standard top-hinged cabinets.
  • Stroke Range: Offers precise compression travel from 60 mm to 200 mm.
  • Force Range Availability: Configurable from 50N to 400N (approx. 11 lbs to 90 lbs of force per strut) within the standard cabinet classification.

  • End Fitting for Gas Springs: Offers modular configuration choices including snap-on plastic/metal ball sockets (∅10mm), fixed metal eyelets, or direct M5/M6/M8 threaded ends.

Key Features of Cabinet Gas Struts

  • OEM Customization Available: GASTAC supports customized gas strut solutions including length, stroke, force, tube size, and fittings.
  • High-Strength Cylinder Construction: Cylinder construction utilizes high-strength carbon steel and precision seamless steel tubing.
  • Hard Chrome-Plated Piston Rod: High-quality piston rods with hard chrome plating offer excellent wear and corrosion resistance.
  • Long Cycle Life: Cycle life has been tested up to 100,000 cycles or more under full load conditions.
  • Smooth Damping Performance: Damping performance during extension and retraction is smooth, quiet, and free of stick-slip.
  • Multiple Sizes and Force Options: A variety of sizes and force values are available to suit cabinet doors of different weights and sizes and meet diverse application needs.

Cabinet Gas Struts Specifications

When selecting or replacing a gas spring, it is important to measure the key dimensions accurately. Start with the Rod Diameter and Body Diameter, which determine the strength and load capacity of the gas spring. Next, measure the Stroke, which is the distance the rod can travel between the fully compressed and fully extended positions. Finally, record the Extended Length, which is the total length of the gas spring from the center of one end fitting to the other when fully extended. By following these steps, you can ensure the correct specifications for your application and achieve reliable performance.

GASTAC Cabinet Gas Struts Specifications

SpecificationSizeTotal lengthExtended lengthStrokeTube DiaRod DiaExtension force
GTQ16352156inch185mm163mm52mm15mm6mm20N-120N
GTQ18055158inch195mm180mm55mm15mm6mm20N-120N
GTQ245901510inch268mm245mm90mm15mm6mm20N-300N
GTQ2781071512inch300mm278mm107mm15mm6mm20N-300N

Cabinet Gas Struts Application

установка газлифтов на фасад

Kitchen Cabinets

Learn more

газлифт для шкафа

Office Cabinets & Storage Units

Learn more

газлифт для кухонного шкафа

Toy Boxes & Storage Chests

Learn more

Gas strut kitchen cabinet models provide smooth, controlled motion for overhead and heavy doors, making cooking and kitchen tasks easier. These struts reduce the effort needed to lift cabinet doors and ensure they stay open safely, protecting both the cabinet structure and the user.

Cabinet door gas struts provide controlled access to storage compartments, improving ergonomics and protecting sensitive documents, office supplies, or equipment. They prevent doors from slamming and make opening and closing smooth, especially in busy office environments.

Cabinet door gas strut ensures lids open smoothly and close softly, making it safer for children to access toys and for adults to store items. These struts help prevent injuries and provide controlled motion for repeated daily use.

Why Choose GASTAC as Your Cabinet Gas Struts Supplier

  • OEM Customization Available: GASTAC supports customized gas strut solutions including length, stroke, force, tube size, and fittings.
  • High-Strength Cylinder Construction: Cylinder construction utilizes high-strength carbon steel and precision seamless steel tubing.
  • Hard Chrome-Plated Piston Rod: High-quality piston rods with hard chrome plating offer excellent wear and corrosion resistance.
  • Long Cycle Life: Cycle life has been tested up to 100,000 cycles or more under full load conditions.
  • Smooth Damping Performance: Damping performance during extension and retraction is smooth, quiet, and free of stick-slip.
  • Multiple Sizes and Force Options: A variety of sizes and force values are available to suit cabinet doors of different weights and sizes and meet diverse application needs.

Frequently Asked Questions

Measure the cabinet door’s weight and dimensions, then select a gas strut for cabinet with matching force (N) and proper length.

Yes, most cabinet gas struts fit upward-opening or top-hinged cabinets using the correct mounting brackets.

High-quality cabinet gas struts from GASTAC typically last over 100,000 cycles under normal use conditions.

If your door no longer stays open or moves unevenly, it’s time to replace your cabinet gas strut.

Yes, installation is simple—just follow the mounting diagram and use the proper brackets.

Yes, GASTAC offers fully customizable cabinet gas struts, allowing you to select the exact size, force, stroke, and end fittings to perfectly match your cabinet design.

Keep them clean, avoid oil contamination, and never force them closed — this ensures a longer lifespan.
