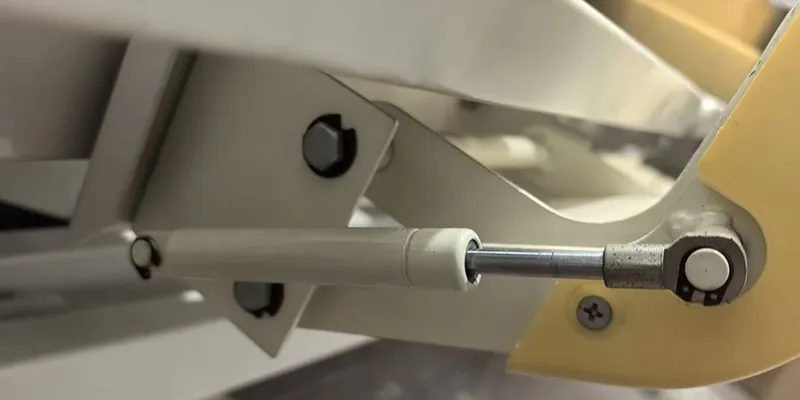

Hydraulic dampers play a critical role in improving the safety, smoothness, and reliability of hospital bed side rails used in modern medical beds. By controlling opening and closing movements, hydraulic dampers prevent sudden drops, reduce operating noise, and enhance user experience for patients and caregivers.
As China’s No. 1 hydraulic damper manufacturer, GASTAC specializes in providing customized hydraulic damper solutions specifically designed for medical beds — and also offers high-quality hospital bed side rails as a complementary solution.
Why Do Hospital Bed Side Rails Need Hydraulic Dampers?
Hospital bed side rails are frequently operated components that require smooth, controlled, and reliable movement. Due to their folding mechanism and repeated daily use, uncontrolled movement can affect safety, comfort, and product durability. Without hydraulic dampers, full hospital bed rails may experience:
- Sudden dropping during closing
- Excessive impact on hinges and locking mechanisms
- Unwanted noise during operation
- Increased mechanical wear over time
By integrating hydraulic dampers into hospital bed side rail systems, manufacturers achieve smoother operation, safer handling, and improved long-term reliability — optimizing both functional performance and the overall user experience of modern medical beds.
Key Benefits of Hydraulic Dampers in Hospital Bed Side Rails
Hydraulic dampers for hospital bed side rails are specialized oil-filled cylinders engineered to provide controlled resistance during opening and closing motions, effectively absorbing kinetic energy. They enable both users and caregivers to raise and lower hospital bed rails smoothly, quietly, and gently — minimizing impact and reducing disturbance to patients. Key benefits include:
Ensures hospital bed side rails open and close smoothly without sudden movement.
- Reduces impact and noise when lowering the bed rail, creating a quieter patient environment.
- Prevents rapid dropping of the rail and improves operational safety for patients and caregivers.
- Makes the bed rail easier and more comfortable to operate during daily use.
- Minimizes stress on hinges, locking systems, and connecting components to extend service life.
- Supports flexible movement requirements for modern adjustable medical beds.
Allows manufacturers to optimize damping force and movement performance for different hospital bed side rails designs.
Process for Selecting Hydraulic Dampers for Hospital Bed Side Rails
Selecting the right hydraulic damper for half-length bed rails is not about supporting the weight of the rail. Instead, the hydraulic damper is designed to provide controlled resistance during the opening and closing process, ensuring smoother movement, reducing impact, and improving the overall user experience. The selection process focuses on matching the damper performance with the movement characteristics of the bed rail system. Key considerations include:
- Analyze the opening/closing height differential of the bed rail to determine damper stroke
Determine the required damping force based on the weight of the hospital bed side rail
- Consider mounting space and installation design to determine overall length and mounting ends
- Define the desired motion performance to determine speed and damping position
- Verify damping performance under repeated cycling
GASTAC Hydraulic Dampers for Hospital Bed Side Rails Specifications
Proper damper selection for half-length bed rails depends on the specific mechanical configuration of each bed system. While rail mass influences the required damping effort, the effective stroke and mounting orientation are dictated by the rail linkage geometry and available installation envelope.
Below is the standard range of hydraulic dampers offered by GASTAC for half-length bed rail applications:
6-15 Hydraulic Dampers Size Chart
| GASTAC Code | Extended Length (mm) | Stroke (mm) | Rod/Body Diameter (mm) | Force (N) |
|---|---|---|---|---|
| D6-15-141-364(O-O)250N | 364 | 141 | 46188 | 250 |
| D6-15-144-363(O-O)250N | 363 | 144 | 46188 | 250 |
| D6-15-60-185(O-O)60N | 185 | 60 | 46188 | 60 |
| D6-15-20-105(O-O)100N | 105 | 20 | 46188 | 100 |
| D6-15-55-185(O-O)80N | 185 | 55 | 46188 | 80 |
| D6-15-12-300(O-O)50N | 300 | 12 | 46188 | 50 |
| D6-15-150-368(B-B)80N | 368 | 150 | 46188 | 80 |
| D6-15-40-148(B-B)40N | 148 | 40 | 46188 | 40 |
| D6-15-65-225(O-O)250N | 225 | 65 | 46188 | 250 |
| D6-15-80-218(M-M)80N | 218 | 80 | 46188 | 80 |
| D6-15-126-326(B-B)150N | 326 | 126 | 46188 | 150 |
| D6-15-120-302(B-O)120N | 302 | 120 | 46188 | 120 |
| D6-15-150-368(B-B)80N | 368 | 150 | 46188 | 80 |
| D6-15-70-222(O-O)70N | 222 | 70 | 46188 | 70 |
| D6-15-38-128(O-O)70N | 128 | 38 | 46188 | 70 |
| D6-15-80-222(O-O)60N | 222 | 80 | 46188 | 60 |
| D6-15-45-158(O-O)90N | 158 | 45 | 46188 | 90 |
| D6-15-55-185(O-O)80N | 185 | 55 | 46188 | 80 |
| D6-15-12-300(O-O)50N | 300 | 12 | 46188 | 50 |
| D6-15-150-368(B-B)60N | 368 | 150 | 46188 | 60 |
| D6-15-100-268(B-B)60N | 268 | 100 | 46188 | 60 |
| D6-15-65-225(O-O)250N | 225 | 65 | 46188 | 250 |
| D6-15-75-225(O-O)100N | 225 | 75 | 46188 | 100 |
| D6-15-40-148(B-B)40N | 148 | 40 | 46188 | 40 |
| D6-15-98-262(O-O)100N | 262 | 98 | 46188 | 100 |
| D6-15-76-254(B-B)225N | 254 | 76 | 46188 | 225 |
| D6-15-105-275(B-B)50N | 275 | 105 | 46188 | 50 |
| D6-15-126-320(B-B)80N | 320 | 126 | 46188 | 80 |
| D6-15-120-302(B-B)120N | 302 | 120 | 46188 | 120 |
| D6-15-160-450(O-O)114N | 450 | 160 | 46188 | 114 |
How to Measure a Hydraulic Dampers?
Proper measurement of a hydraulic damper is essential for correct selection and replacement. Key dimensions and performance parameters must be accurately captured to ensure compatibility with the existing mechanical system. Key measurements include:
- Extended Length: Measure the center-to-center distance between the mounting points (eyes or brackets) when the damper is fully extended.
- Compressed Length: Compress the damper fully and measure the center-to-center distance of the mounting points.
- Stroke Length: Subtract the compressed length from the extended length to find the total distance the rod can travel.
- Body and Rod Diameters: Measure the outside diameter of the main cylinder tube and the diameter of the piston rod using a caliper.
GASTAC Hospital Bed Side Rails
GASTAC is not only focused on developing hydraulic dampers for half-length bed rails. By understanding the complete movement requirements of medical bed rail systems, we also provide standard hospital bed side rails to help customers achieve a more efficient and reliable sourcing solution.
L-Shaped Hospital Bed Side Rails
L type hospital bed side rails, or named it aluminum hospital bed side rails. It is foldable with 6 pieces of column support, with a push button to process it, then the full length hospital bed side rails will be height up and down.
ABS Hospital Bed Side Rails with Hydraulic System
ABS hospital bed side rails with hydraulic system offer higher value and are typically used in electric hospital beds or ICU beds. They feature an easy, detachable design with screw-reinforced assembly. When any section of the electric bed is raised, lowered, or tilted, the side rails at both sides of the head end move simultaneously, ensuring patient safety throughout the positioning process. Additionally, the rails can be raised or lowered manually by operating the release handle, which controls the hydraulic dampers.
How to Choose High Quality Hydraulic Dampers
When evaluating hydraulic damper quality, performance consistency and long-term reliability are the true differentiators. As a leading hydraulic damper manufacturer, GASTAC delivers exceptional product quality at competitive cost levels. GASTAC commitment to precision engineering and stringent quality control ensures each hydraulic damper meets the highest standards of durability and performance.
- Use high-strength carbon steel and precision seamless steel tubing for cylinder construction.
- High-quality piston rod with hard chrome plating for wear and corrosion resistance.
- Cycle life tested up to 300,000 cycles or more under full load conditions.
- Consistent damping performance across every cycle.
- Passes salt spray test exceeding 240 hours.
- Verified performance under medical safety and rehabilitation equipment standards.
How to Choose a Hydraulic Dampers Manufacturer
Choosing the right hydraulic dampers manufacturer is an important step for ensuring product quality, supply stability, and long-term cooperation. As a professional Hydraulic Dampers Manufacturer in China, GASTAC provides reliable hydraulic damping solutions with advanced manufacturing processes, strong production capacity, and strict quality control systems. We are committed to delivering stable, cost-effective hydraulic dampers for medical equipment and other industrial applications.
- With a proven track record of serving over 500 medical industry clients, we have established long-term partnerships with leading brands.
- Factory scale with over 10,000 m² production facility and 100+ employees, including engineering, production, and quality control teams
- Compliance with international quality and safety standards (e.g., ISO certification)
- Production capacity of 10,000 hydraulic dampers every two weeks.
- Strict tolerance control for consistent force output across production batches (Error within 0.2%)
- Verified cycle life testing and durability performance reports
- Reliable after-sales service and technical support for long-term cooperation
Ready to Enhance your Medical Bed Design?
Whether you need high-performance hydraulic dampers to upgrade your current rails or a full-scale redesign of your side rail systems, GASTAC is ready to assist. [Contact our Engineering Team today] to discuss your specifications and receive a technical proposal tailored to your project. To help me narrow down the exact damper you need, please share:
- Brand and model of the medical bed or hospital bed side rails
- Replacing existing damaged dampers or upgrading the hospital bed side rail model
- New retrofit project: adding a damper to hospital bed side rails
- Dimensional data for existing hydraulic dampers (length, stroke, and thickness)
