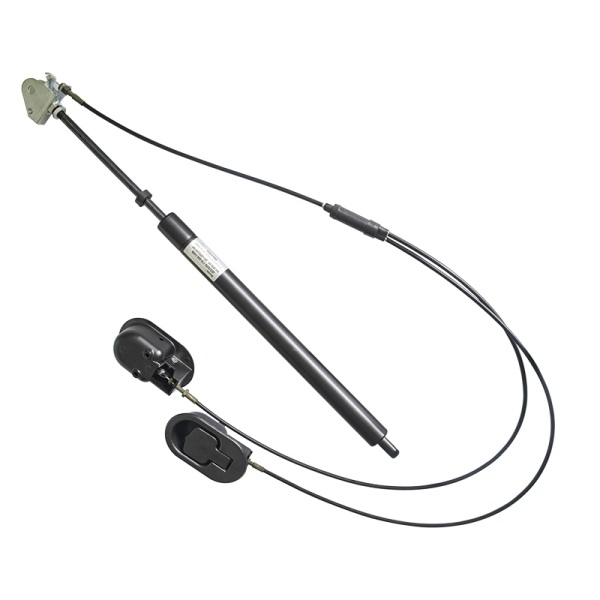

Rigid Locking Gas Spring with vertical mounting
For Rigid Locking Gas Spring with vertical mounting, the piston works in the environment filled with oil .Since the oil can not be compressed, the rigid locking gas spring can be used normally under the action of gravity.
For Rigid Locking Gas Spring with vertical mounting, the piston works in the environment filled with oil .Since the oil can not be compressed, the rigid locking gas spring can be used normally under the action of gravity.In order to make the gas springs work in a best condition, the vertical installation must be guaranteed.The design of Separating piston can reduce cost effectively. Pull or push direction behavior of the locking depends on the alignment of the piston rod.For locking in the compression direction, the gas springs must be installed with the piston rod pointing up. In the other cases where locking in the extension direction is desired,a new version with the piston rod pointing down should be mounted.
Advantages
Cost-effective variant with high locking force
Perfect weight balance in many working conditions
Reasonable design extending the service life
Convenient installation due to a variety of end fitting options
Rigid Locking Gas Spring Installation Dimensions
Some Specification Rigid Locking Gas Spring with vertical mounting
| Specification | Force(N) | Stroke(mm) | C-C Length(mm) | Connectors |
|---|---|---|---|---|
| JKQ10-27-20-149.5(O-N)300N | 300 | 20 | 149.5 | O-N |
| JKQ10-27-20-149.5(O-N)500N | 500 | 20 | 149.5 | O-N |
| JKQ10-27-25-157.5(O-N)500N | 500 | 25 | 157.5 | O-N |
| JKQ10-27-30-168.5(O-N)700N | 700 | 30 | 168.5 | O-N |
| JKQ10-27-40-187.5(O-N)350N | 350 | 40 | 187.5 | O-N |
| JKQ10-27-60-228(O-N)600N | 600 | 60 | 228 | O-N |
| JKQ10-27-80-269(O-N)500N | 500 | 80 | 269 | O-N |
| JKQ10-27-100-310(O-N)700N | 700 | 100 | 310 | O-N |
Since the oil cannot be compressed, the normal safe holding force must be ensured by the influence of gravity. So ,additional piston as a separating element between gas and oil will not be necessary.In this condition, the entire working process of the piston is located in the oil layer, which allows the required rigid locking in any position.

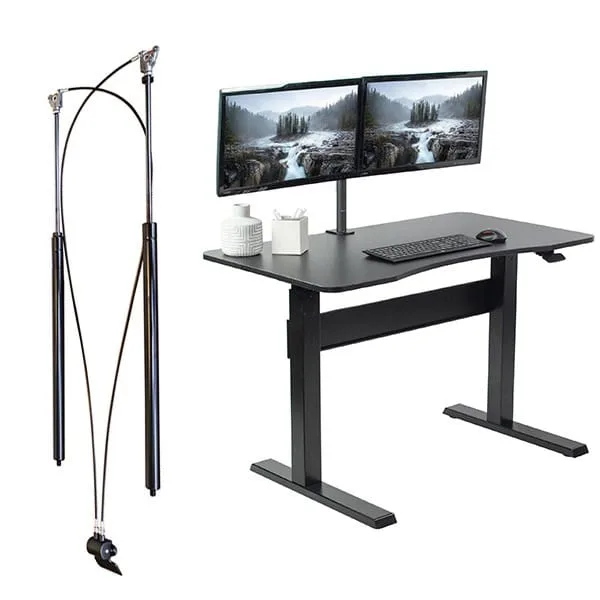

Rigid Locking Gas Spring Application
