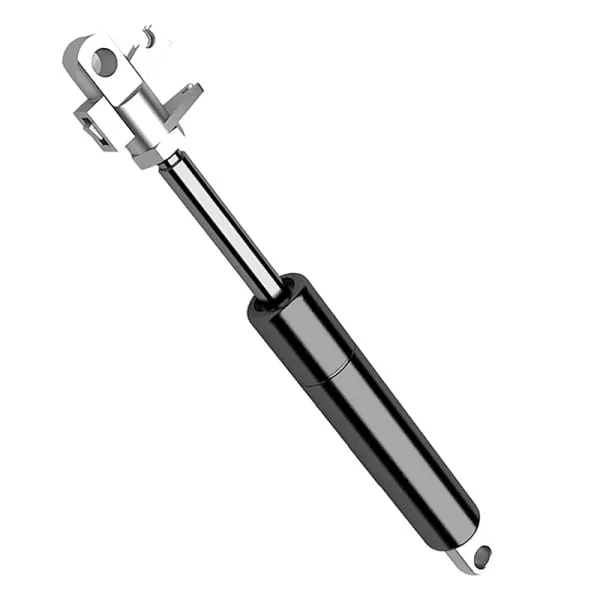

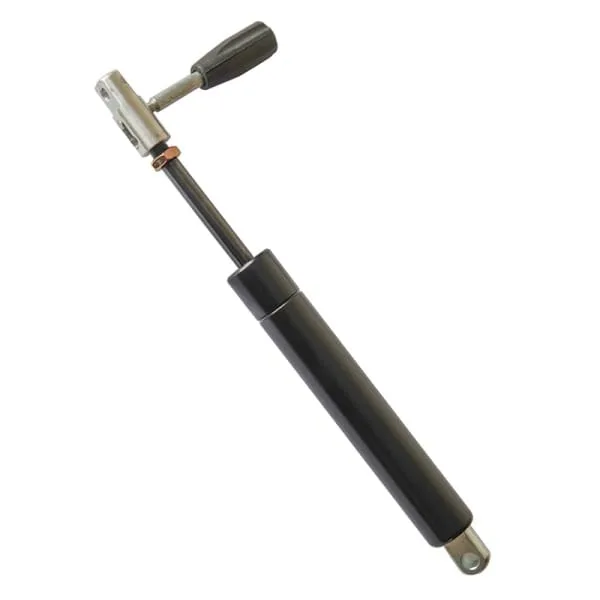

Locking gas spring
locking gas spring is that its rod can be locked at any point in its travel – and remain there indefinitely.
When considerable forces influence moving construction parts, reliable locking is important. The piston rod of the locking gas spring can be adjusted in every required position of the entire stroke by actuating the release pin. Depending on the occurring forces in your application, we can fit your locking gas spring for different load limits in a reasonable way.
How does a locking gas spring work?
Locking gas spring consist of a pressure tube and a piston rod with a piston as well as a valve that is actuated via the release pin. When the valve is opened, the extension force aids the user in adjusting his or her application in that the gas spring bears a large part of the weight force.

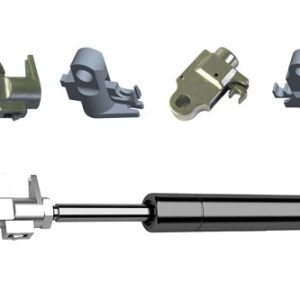

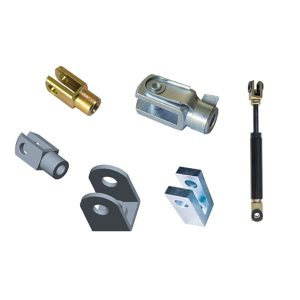

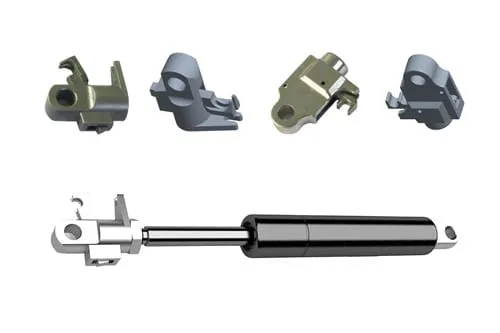

We have different end fitting for different function of locking gas spring,you can choose your need end fitting.
Locking Gas Springs Installation Dimensions
Some Specification Locking Gas Springs
| Specification | Force(N) | Stroke(mm) | C-C Length(mm) | Connectors |
|---|---|---|---|---|
| JKQ10-22-60-228(O-N)400N | 400 | 60 | 228 | O-N |
| JKQ10-22-80-266(O-N)400N | 400 | 80 | 266 | O-N |
| JKQ10-27-80-269(O-N)500N | 500 | 80 | 269 | O-N |
| JKQ10-27-100-310(O-N)550N | 550 | 100 | 310 | O-N |
| JKQ10-28-120-348(O-N)500N | 500 | 120 | 348 | O-N |
| JKQ10-28-160-430(O-N)200N | 200 | 160 | 430 | O-N |
| JKQ10-28-200-509(O-N)600N | 600 | 200 | 509 | O-N |
| JKQ10-28-250-610(O-N)500N | 500 | 250 | 610 | O-N |
Locking Gas Springs Application
