Trailer Gas Struts – Cross Reference & OEM Manufacturing
Smooth & Controlled Motion
Reliable lifting and controlled movement for trailer lids, doors and ramps.
Custom Engineering Support
Technical support for custom force, dimensions and end fittings.
Factory-Direct Bulk Supply
Excellent quality at competitive factory-direct prices.
Trailer gas struts provide smooth lifting and reliable support for trailer lids, ramps, doors, and serving hatches. As a professional gas spring manufacturer, we offer OEM & ODM solutions, custom specifications, and competitive factory-direct prices for bulk orders.
Trailer Gas Struts Product Details
- Extended Length9.53" (242.1 mm)
- MOQ50 pcs
- Cross ReferenceC16-22445
- Price$5.6
- Extended Length17.10" (434.3 mm)
- MOQ50 pcs
- Cross ReferenceC16-02622
- Price$5.3
- Extended Length11.26" (286.0 mm)
- MOQ50 pcs
- Cross ReferenceC16-23384
- Price$6.2
- Extended Length19.69" (500.1 mm)
- MOQ50 pcs
- Cross ReferenceC16-08568
- Price$6.0
- Extended Length26.26" (667.0 mm)
- MOQ50 pcs
- Cross ReferenceC16-24797
- Price$5.5
- Extended Length20.00" (508.0 mm)
- MOQ50 pcs
- Cross ReferenceC16-08054
- Price$6.5
- Extended Length15.70" (398.8 mm)
- MOQ50 pcs
- Cross ReferenceC16-09209
- Price$5.2
- Extended Length12.00" (304.8 mm)
- MOQ50 pcs
- Cross ReferenceC16-11028
- Price$5.2
- Extended Length18.70" (475.0 mm)
- MOQ50 pcs
- Cross ReferenceC16-33313
- Price$6.1
- Extended Length15.66" (397.8 mm)
- MOQ50 pcs
- Cross ReferenceC16-19568
- Price$6.3
- Extended Length19.69" (500.1 mm)
- MOQ50 pcs
- Cross ReferenceC16-08316
- Price$5.9
- Extended Length14.00" (355.6 mm)
- MOQ50 pcs
- Cross ReferenceC16-06389
- Price$4.9
- Extended Length16.50" (419.1 mm)
- MOQ50 pcs
- Cross ReferenceC16-18130A
- Price$6.2
- Extended Length21.38" (543.1 mm)
- MOQ50 pcs
- Cross ReferenceC16-11968
- Price$5.9
- Extended Length14.96" (380.0 mm)
- MOQ50 pcs
- Cross ReferenceC16-23873A
- Price$5.3
- Extended Length8.50" (215.9 mm)
- MOQ50 pcs
- Cross ReferenceC16-16805
- Price$6.1
- Extended Length16.00" (406.4 mm)
- MOQ50 pcs
- Cross ReferenceC16-23868
- Price$6.5
- Extended Length7.00" (177.8 mm)
- MOQ50 pcs
- Cross ReferenceC16-14860
- Price$5.3
- Extended Length16.06" (407.9 mm)
- MOQ50 pcs
- Cross ReferenceC16-14195
- Price$5.7
- Extended Length18.70" (475.0 mm)
- MOQ50 pcs
- Cross ReferenceC16-14734
- Price$5.4
Want to buy directly?
Browse the full Trailer Gas Struts collection on our shop.
Trailer Gas Strut Size & Force Reference
Beyond the C16 cross-reference models above, GASTAC manufactures custom trailer gas struts across four core series. Click View Specs on any series to see model-by-model dimensions. For the full series catalogue, see the Caravan Gas Struts specification tables — the same core series are used across caravan and trailer applications.
Carbon Steel Series
| Series | Rod Ø | Tube Ø | Extended Length | Stroke | Thread | Force Range | Action |
|---|---|---|---|---|---|---|---|
| 6-15 | 6 mm | 15 mm | 128–500 mm | 30–215 mm | M6×1.0 | 50–400 N | |
| 8-18 | 8 mm | 18 mm | 175–800 mm | 50–365 mm | M6×1.0 | 50–700 N | |
| 10-22 | 10 mm | 22 mm | 195–1200 mm | 60–555 mm | M8×1.25 | 50–1200 N | |
| 14-28 | 14 mm | 28 mm | 195–1200 mm | 60–555 mm | M10×1.5 | 50–2200 N |
304 / 316 Stainless Steel Series
| Series | Rod Ø | Tube Ø | Extended Length | Stroke | Thread | Force Range | Action |
|---|---|---|---|---|---|---|---|
| 6-15 SS | 6 mm | 15 mm | 155–390 mm | 45–160 mm | M6×1.0 | 50–400 N | |
| 8-18 SS | 8 mm | 18 mm | 310–710 mm | 115–320 mm | M6×1.0 | 50–700 N | |
| 10-22 SS | 10 mm | 22 mm | 295–1100 mm | 105–505 mm | M8×1.25 | 50–1200 N | |
| 14-28 SS | 14 mm | 28 mm | 505–1100 mm | 210–505 mm | M10×1.5 | 50–2200 N |
Trailer-specific considerations: horsebox ramps, catering hatches and snowmobile toolbox lids often require higher force ratings and corrosion-resistant finishes. For outdoor trailer use, SS304 or SS316L is recommended. MOQ is 50 pcs for standard series; custom lengths, forces and end fittings are available for OEM/ODM projects.
Need a specific force rating or cross-reference for an existing trailer part number? Send us your drawing or part number for a quote — or browse the full caravan gas struts specification tables for model-by-model dimensions of the same core series.
Trailer Gas Struts Applications
Common Mounting Positions
Trailer Window Gas Struts
Window opening and support.
Trailer Lid Shocks
Lid and hatch support.
Trailer Door Struts
Access door support.
Typical Trailer Applications
Horsebox Ramp Gas Struts
Assist with controlled lifting and lowering of horsebox loading ramps.
Snowmobile Trailer Toolbox Struts
Help lift and hold trailer storage lids for convenient access.
Catering Trailer Gas Struts
Support lift-up serving hatches and access doors on catering trailers.

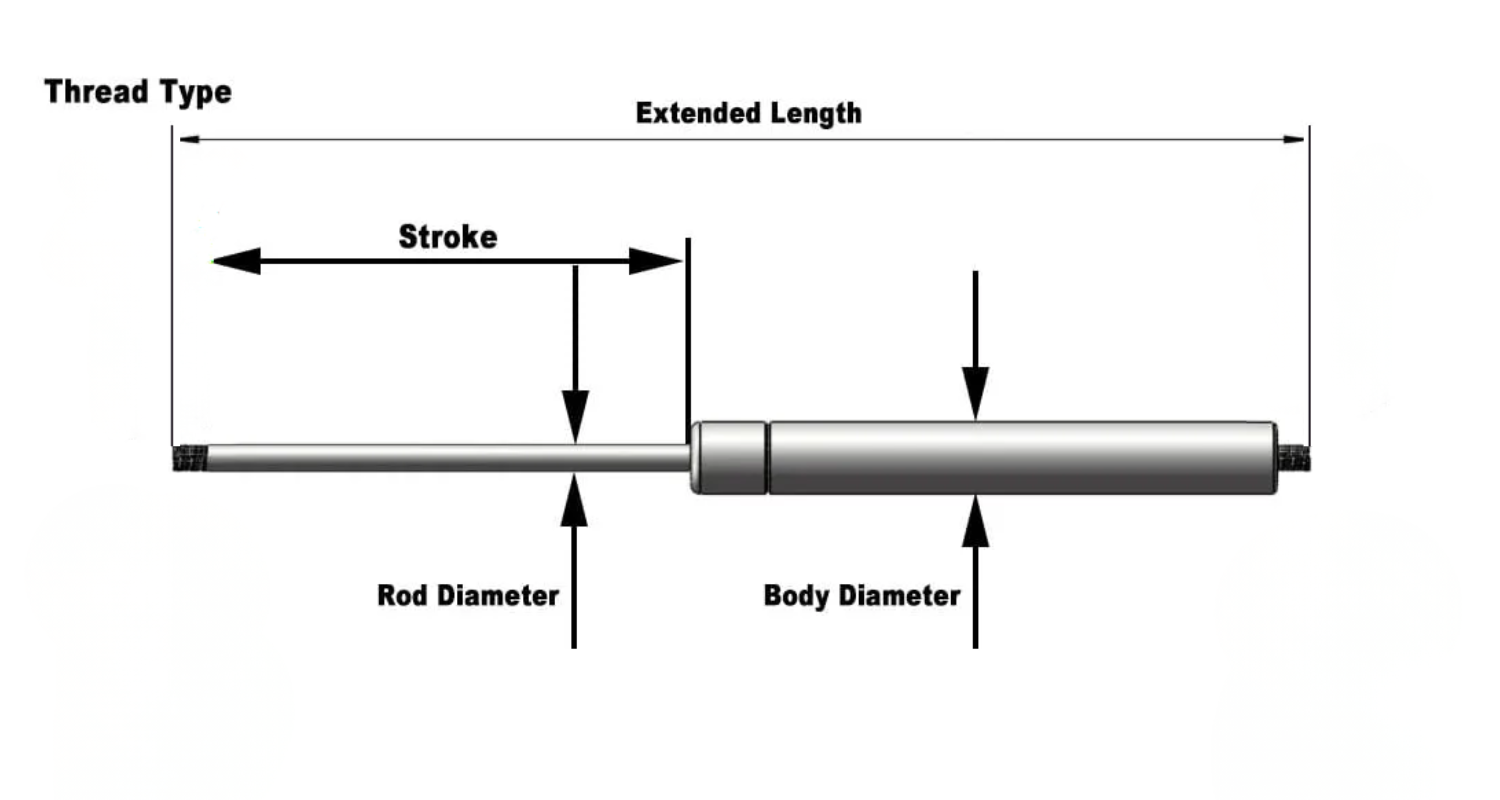

Trailer Gas Struts Sizing & Selection
Extended Length & Stroke
Measure the extended length and required stroke to match your installation.
Rod & Body Diameter
Check the rod and cylinder diameters for dimensional compatibility.
Force Rating (N)
Select the required force based on load weight and mounting geometry.
Thread & End Fittings
Confirm thread size and fitting compatibility with existing mounts.
Quality & Reliability
Smooth & Reliable Operation
Smooth lifting, controlled movement and dependable support for trailer components.
Precision Manufacturing & Quality Control
Controlled manufacturing and inspection processes for consistent product quality.
Comparable Performance & Reliability
Under the same 30,000-cycle testing conditions, GASTAC gas struts deliver performance and reliability comparable to leading international brands.
GASTAC Factory Advantages
With over 20 years of gas spring manufacturing and export experience, GASTAC supplies OEM buyers, engineers, and distributors in more than 50 countries. Our factory supports custom specifications, engineering requirements, and bulk production.
OEM & ODM Customization
Custom force ratings, stroke lengths, extended lengths, end fittings, and material options including SS304 and SS316L. Share your drawings and technical requirements for a tailored quotation.
Fast & Reliable Delivery
Standard models can ship within 3–5 working days, while mass production typically takes 15–25 working days. Worldwide shipping options include express, air, and sea freight.
Engineering & Technical Support
Technical assistance with force selection, mounting geometry, stroke, and end fittings. Drawings and specification details can be reviewed to support your project requirements.
