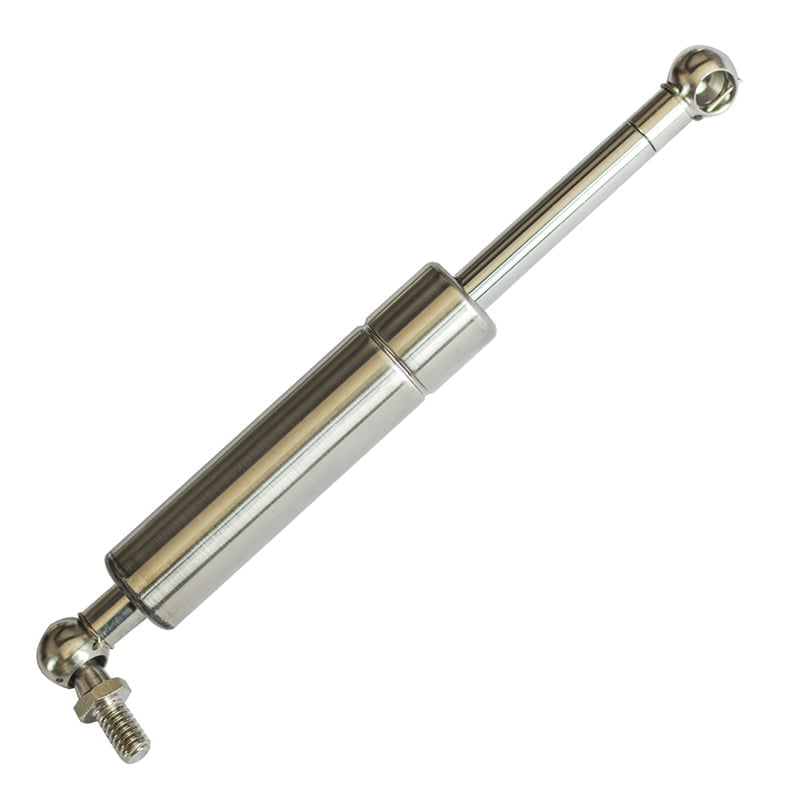

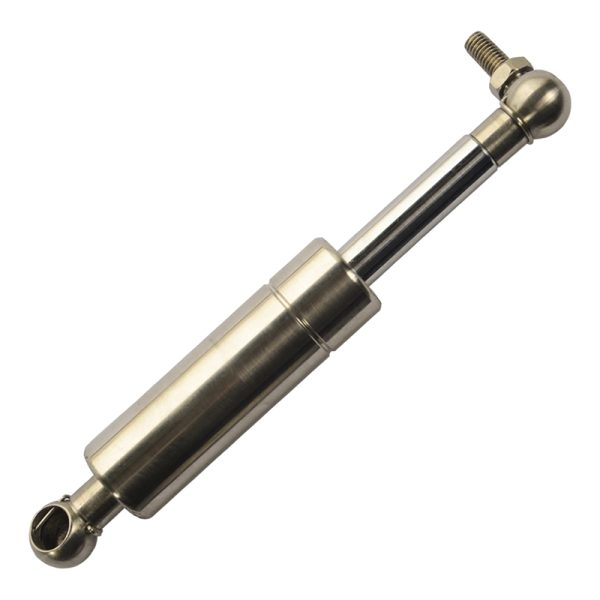

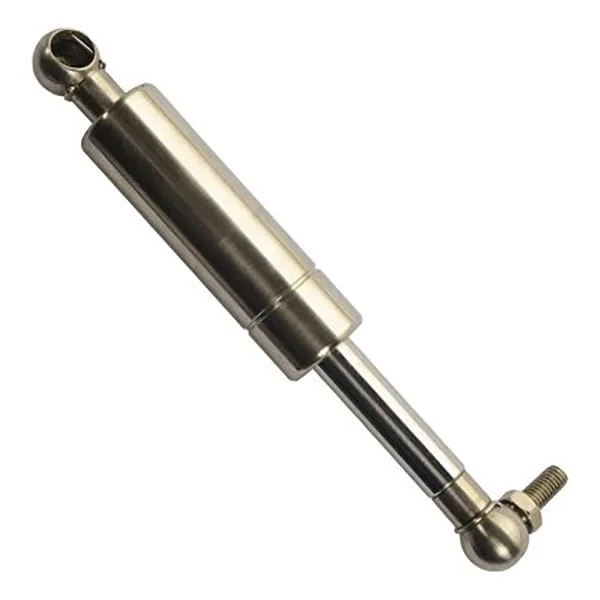

Stainless steel gas spring
Gastac take use of medical grade 316L stainless steel for the production of our high quality stainless gas spring struts. Stainless steel gas springs are also known as 316L Stainless Steel Gas Struts,Fixed Force Stainless Steel Compression Gas Struts.
Gastac 316L Stainless Steel Gas Springs & Struts are maintenance-free, self-contained systems that are filled with nitrogen under high pressure and under no circumstances should they be opened or overloaded.The internal defined quantity of oil for end position damping and lubrication purposes. The gas springs contains a check valve in the grub screw of the pressure pipe which enables the extension force to be subsequently reduced.
Stainless Steel Gas Springs Installation Dimensions
The Stainless Steel Gas Springs must be stored and mounted with the piston rod extending downwards,with high quality can replacement attwood stainless steel gas spring.Gastac stainless steel gas spring is being filled result in a tolerance range of ±5 % for the rated extension force,the physical properties are apply.
Stainless Steel Gas Struts Installation Dimensions
| Specification | Force(N) | Stroke(mm) | C-C Length(mm) | Connectors |
|---|---|---|---|---|
| YQ10-22-260-725(B-L)500N | 500 | 260 | 725 | B-L |
| YQ10-22-213-570(B-B)700N | 700 | 213 | 570 | B-B |
| YQ10-22-220-532(B-B)450N | 450 | 220 | 532 | B-B |
| YQ10-22-248-585(O-O)650N | 650 | 248 | 585 | O-O |
| YQ10-22-260-625(B-B)300N | 300 | 260 | 625 | B-B |
| YQ10-22-170-560(U-U)450N | 450 | 170 | 560 | U-U |
| YQ10-22-260-630(B-B)300N | 300 | 260 | 630 | B-B |
| YQ10-22-250-593.5(O-O)550N | 550 | 250 | 593.5 | O-O |
| YQ10-22-270-642(O-O)450N | 450 | 270 | 642 | O-O |
| YQ10-22-298-690(B-B)600N | 600 | 298 | 690 | B-B |
| YQ10-22-280-680(B-B)300N | 300 | 280 | 680 | B-B |
| YQ10-22-233-632(O-O)530N | 530 | 233 | 632 | O-O |
Features & Benefits304/316 Stainless Steel Tube and Rod End of Travel Dampening
Designed & built to the highest gas spring manufacturing standards
High life cycle design
Low electrolytic capacity
Corrosion Resistance
Low magnetic signature
Multiple end fitting choices
Ideal for marine, petrochemical, pharmaceutical, medical, and food industry applications,and high technology industries
applications for stainless steel springs
Stainless steel gas spring applications
Food service and processing equipment
Petrochemical
Medical and Pharmaceutical
Applications requiring non-magnetic components.
Features & Benefits
- 304/316 Stainless Steel Tube and Rod End of Travel Dampening
- Designed & built to the highest gas spring manufacturing standards
- High life cycle design
- Low electrolytic capacity
- Corrosion Resistance
- Low magnetic signature
- Multiple end fitting choices
- Ideal for marine, petrochemical, pharmaceutical, medical, and food industry applications,and high technology industries
applications for stainless steel springs
- Marine applications
- Food service and processing equipment
- Petrochemical
- Medical and Pharmaceutical
- Applications requiring non-magnetic components
