VW Passat Boot Gas Struts
VW Passat Boot Gas Struts Manufacturer
GASTAC is a professional gas spring manufacturer specializing in automotive lift support systems. GASTAC vw passat boot gas struts are engineered to meet or exceed OEM performance standards, providing consistent lifting force, precise damping control, and long-term durability under real-world operating conditions.
Designed for direct replacement across multiple Passat generations, these gas struts ensure safe, smooth, and reliable trunk operation for both end users and aftermarket distributors.
What are VW Passat Boot Struts?

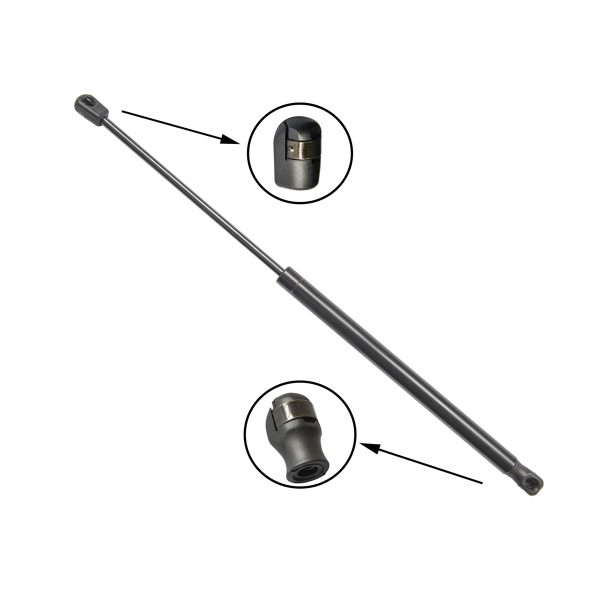

A vw passat boot strut (gas spring) is a sealed mechanical device filled with high-pressure nitrogen gas. It generates controlled force through internal pressure acting on the piston rod, allowing the trunk lid to be lifted and held in position. Core Functional Characteristics:
- Force generation via compressed nitrogen gas
- Oil damping system for motion control
- Sealed structure to prevent leakage
- Self-contained, maintenance-free operation
GASTAC designs each vw passat boot strut with optimized internal pressure curves to match trunk weight and hinge geometry.
OEM Reference & Cross Compatibility
To ensure perfect fitment, GASTAC vw passat boot gas struts are developed based on original OEM specifications:
| OEM | Photo | Rod / Tube Ø | Stroke | Extended Length | Force | Year |
|---|---|---|---|---|---|---|
| 3AE827550A |  |
8 / 18 mm | 145 mm | 375 mm | 420N | 2010-2020 |
| 3AF827550B |  |
8 / 18 mm | 175 mm | 455 mm | 580N | 2010-2015 |
Vehicle Compatibility Coverage

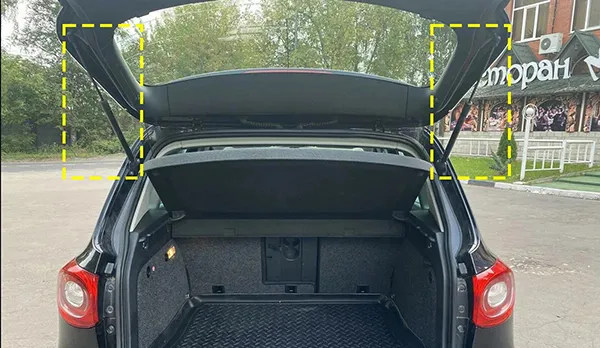

GASTAC vw passat boot struts are compatible with:
- Volkswagen Passat B5 Sedan & Wagon
- Volkswagen Passat B6 Sedan
- Volkswagen Passat B7 Sedan & Variant
- Volkswagen Passat CC
- Estate / Tailgate configurations
We support multiple configurations including standard trunk lids and heavier wagon tailgates.
Interior Technology
- Highest corrosion resistance achieved through powder coated cyclinders and special treated piston rod surfaces.
- Minimal friction for the production of lowest extension forces.
- Great life cycles.
- Protection against vibration and light side forces.
- Integrated grease chamber.
- Low break away forces.
- Installation and storage in any position.
Installation Guidelines for VW Passat Boot Struts
Step 1: Secure the boot lid using a support rod
Step 2: Use a flat-head screwdriver to release the metal retaining clip
Step 3: Remove the old boot strut from ball joints
Step 4: Align and press the new boot strut into position
Step 5: Ensure clips are fully locked
Important Notes: Always replace both struts together. Install with the rod facing down. Do not puncture or heat the gas spring.
Performance Advantages of GASTAC VW Passat Boot Struts
- Precise Force Matching: Each vw passat boot strut is calibrated according to trunk weight to ensure optimal lifting angle and holding force.
- Smooth Motion Control: Integrated oil damping eliminates sudden movement, preventing trunk slamming or bounce-back.
- Extended Service Life: The product offers a cycle life of 30,000–50,000 operations, delivers stable force output throughout its service life, and is designed to resist environmental wear for long-term reliability.
- Temperature Stability: Maintains consistent performance across varying climates.
Why GASTAC Over OEM or Standard Aftermarket?
| Feature | GASTAC Gas Struts | OEM Gas Struts |
|---|---|---|
| Force Calibration | Precision-engineered force output with tighter tolerances for smoother, controlled motion | Factory-set force, reliable but less adaptable |
| Durability | 30,000–50,000 cycles with stable long-term performance | Standard lifespan with higher replacement cost |
| Material Quality | Corrosion-resistant steel with high-performance sealing system | OEM-grade materials with fixed specs |
| Fitment | Direct OEM replacement, easy installation | Original fitment |
| Cost Efficiency | OEM-level quality at a more competitive price | Higher cost due to brand premium |
Typical Failure Signs & Replacement Indicators
You should consider replacing your vw passat boot struts when the trunk no longer performs smoothly or safely during opening and closing, showing signs of reduced support or internal failure:
- Trunk fails to stay open and gradually closes on its own
- Lifting becomes weak, slow, or uneven during operation
- Visible oil leakage appears on the strut body
- Sudden drop or obvious safety risk occurs when opening or closing the trunk
GASTAC Custom Manufacturing Capability
As a direct manufacturer, GASTAC offers full OEM-level customization and end-to-end production support for gas struts, ensuring flexible solutions for different industrial and automotive applications:
- Force customization (Newton range with precise adjustment for different applications)
- Size and stroke adjustment for exact OEM or replacement fitment requirements
- Connector type customization for compatibility with various mounting systems
- Private label / branding to support your own product line and market identity
- Bulk production support with stable capacity and consistent quality control
Contact Us
Interested in our products, pricing, MOQ, or customized solutions? Fill out the form below to submit your inquiry or request a quote, and our team will get back to you within 24 hours.
