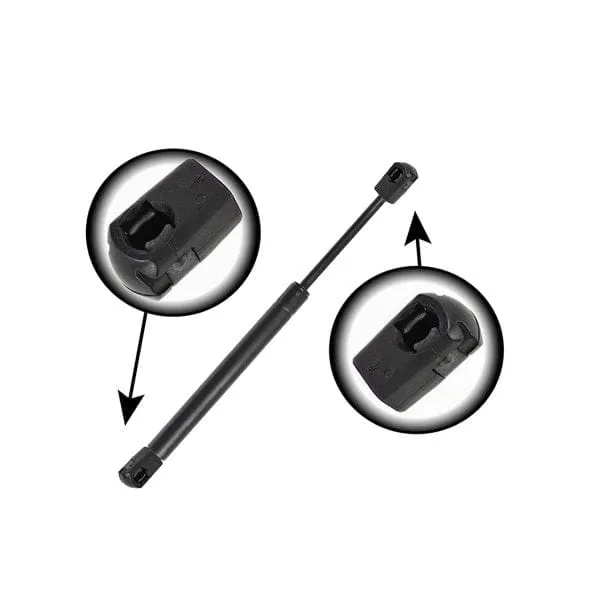

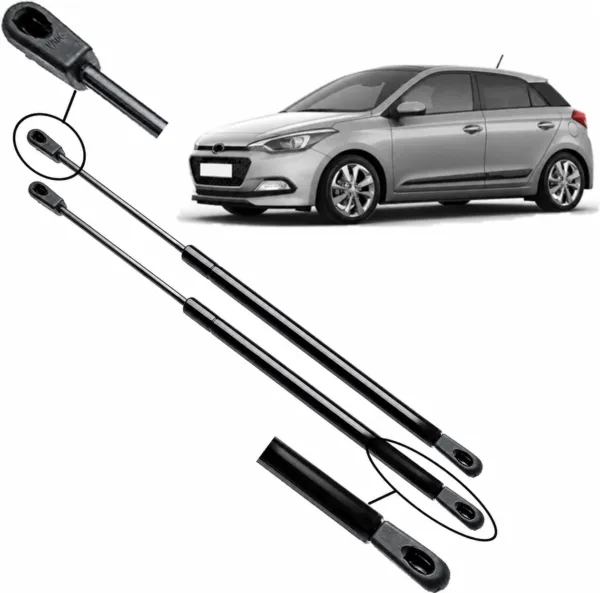

Hyundai I20 Boot Struts

Looking for Hyundai I20 Boot Struts Replacement?

Gastac supplies Hyundai I20 boot struts replacement. These gas struts help the boot lid open smoothly and remain securely supported during daily loading, unloading, or vehicle maintenance. This product can be matched with OEM numbers 8196124, 8717026010, 8717026011, RB8795515, SG367001. Buyers can send the OEM number, sample, or vehicle details to confirm the correct replacement option before ordering.

When Is It Time to Replace Hyundai I20 Boot Struts?

Hyundai I20 boot struts should be checked or replaced when the boot lid becomes heavy, drops after opening, or cannot stay safely in the raised position. These problems usually mean the boot struts have lost support force because of gas pressure loss, aging seals, frequent use, or temperature changes.

• Typical signs: The boot lid slowly falls, needs hand support, feels difficult to lift, or does not stay fully open.
• Common causes: Internal pressure loss, worn seals, repeated opening cycles, cold weather, or long service life.
• Replacement solution: Gastac supplies reliable Hyundai I20 boot shocks that can be matched with OEM numbers 8196124, 8717026010, 8717026011, RB8795515, and SG367001.
• Buyer support: If you are sourcing boot shocks Hyundai I20 for repair, resale, or bulk supply, please provide the OEM number, sample, or vehicle details for confirmation.

Hyundai I20 Boot Struts Specification

• Model: Santa
• Color: Black
• Compatible Makes: Hyundai
• Year: 2011, 2012, 2013, 2014
• Brand: Gastac
• OEM Number: 8196124, 8717026010, 8717026011, RB8795515, SG367001
• Manufacturer Warranty: 2 Years

OEM	Image	Stroke	Extended Length	Compressed Length	Force
8196124		6.59 in	17.15 in	10.55 in	22 Lbs
8717026010		6.59 in	17.15 in	10.55 in	22 Lbs
8717026011		6.69 in	17.13 in	10.35 in	22 Lbs
RB8795515		/	17.14 in	10.99 in	/
SG367001		6.15 in	17.14 in	10.99 in	24 Lbs

Hyundai I20 Boot Struts Fitment

2001-2006 Hyundai Santa Fe Base Sport Utility 4-Door Rear Window Glass

2001-2006 Hyundai Santa Fe Base Sport Utility 5-Door Rear Window Glass

2001-2006 Hyundai Santa Fe GL Sport Utility 4-Door Rear Window Glass

2001-2006 Hyundai Santa Fe GL Sport Utility 5-Door Rear Window Glass

2001-2006 Hyundai Santa Fe GLS Sport Utility 4-Door Rear Window Glass

2001-2006 Hyundai Santa Fe GLS Sport Utility 5-Door Rear Window Glass

2001-2006 Hyundai Santa Fe LX Sport Utility 4-Door Rear Window Glass

2001-2006 Hyundai Santa Fe LX Sport Utility 5-Door Rear Window Glass

2001-2006 Hyundai Santa Fe Limited Sport Utility 4-Door Rear Window Glass

Interior Technology

• Highest corrosion resistance achieved through powder coated cylinders and special treated piston rod surfaces.
• Minimal friction for the production of lowest extension forces.
• Great life cycles.
• Protection against vibration and light side forces.
• Integrated grease chamber.
• Low break away forces.
• Installation and storage in any position.

How to Install Hyundai I20 Boot Struts?

Hyundai I20 boot struts can usually be replaced without drilling or major modification. Before removal, the boot lid must be safely supported because it may drop suddenly when one old strut is disconnected.

• Support the boot lid: Keep the boot fully open with help from another person or a strong support tool.
• Release the retaining clip: Use a flathead screwdriver to gently loosen the small metal clip on the ball socket.
• Remove the old strut: Pull the strut socket away from the ball stud, then repeat the step at the other end.
• Install the new strut: Fit the replacement strut in the same direction as the old one and press each socket onto the ball stud until it locks.
• Test the boot: Open and close the boot several times to confirm smooth movement and stable support.

Why Choose Gastac Hyundai I20 Boot Struts?

As a trusted gas spring manufacturer and supplier, Gastac provides reliable gas strut solutions with consistent quality, stable supply, and strong OEM support for global customers. For buyers, choosing a gas spring supplier is not only about price, but also about product durability, batch consistency, delivery reliability, and professional technical support.

• Manufacturer direct supply with stable quality and competitive pricing
• Since 2007, certified with IATF 16949 and ISO 9001:2015
• Bulk and wholesale orders supported with reliable delivery
• OEM-friendly with customizable force, length, stroke, end fittings, and mounting options
• Application support for automotive, furniture, machinery, medical, marine, and industrial uses
• Clear specification confirmation and responsive communication before production
• Two-year after-sales warranty for long-term reliability

FAQ About Hyundai I20 Boot Struts

Q1: How do I know if my boot shocks hyundai i20 need replacement?

If the boot lid drops after opening, feels heavy, or cannot stay open without hand support, the boot struts may have lost support force and should be checked for replacement.

Q2: Can I match Hyundai I20 boot shocks by OEM number?

Yes. Gastac can help check replacement options with OEM numbers 8196124, 8717026010, 8717026011, RB8795515, and SG367001.

Q3: Are boot shocks Hyundai I20 easy to replace?

In most cases, they are easy to replace when the correct part is selected. The boot lid should be safely supported before removing the old struts and installing the new ones.

Q4: What affects the price of Hyundai I20 boot struts?

The price usually depends on order quantity, OEM requirement, packaging, customization, and shipping terms. Gastac offers competitive factory pricing for wholesale and aftermarket buyers.

Q5: Can Gastac supply hyundai i20 boot shocks in bulk?

Yes. Gastac supports bulk orders, wholesale supply, and custom gas strut requirements for automotive replacement applications.

Need help confirming fitment or OEM replacement? Contact us today, visit our OEM replacement page,
or browse our shop and search by OEM number to find the right replacement.
