Линейный привод

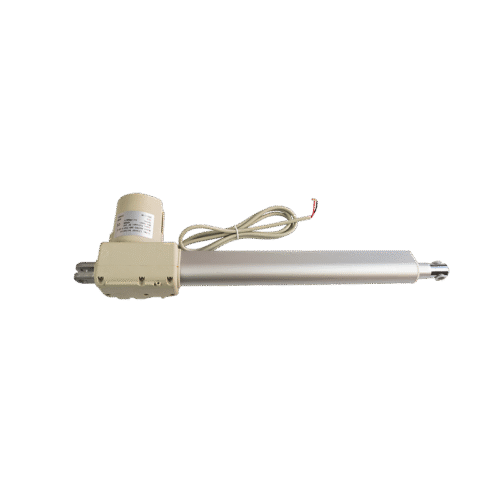

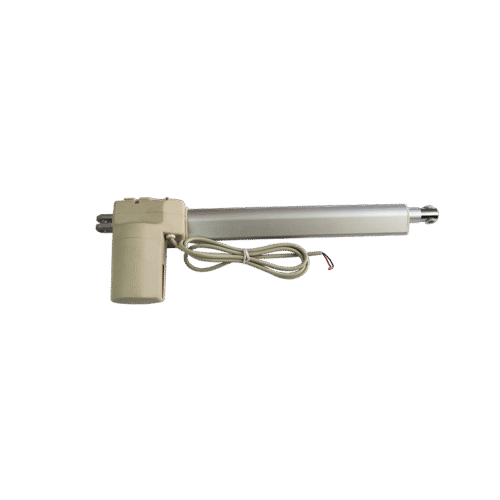

Linear actuators are a type of actuator that convert rotational motion in motors into linear or straight push/pull movement. Electric cylinder actuators are ideal for all types of applications where tilting, lifting, pulling or pushing with pounds of force are required. Waterproof linear actuator are often the preferred solution when you need simple, safe and clean movement with accurate precision and smooth motion control.

Общие характеристики
Type∶GTZT62 Series
Rated voltage（DCV）∶DC24V
IMAX（A）∶≤4A
No-load speed（mm/s）∶4～6，6～8，8～12，12～18,24～38
Thrust（N）∶6000N，4000N，3000N，2000N，1000N
No-load noise（db）∶≤50dB（A）@500mm （Ambient noise≤37dB（A））
Minimum installation distance L∶S+150 mm
Distance S∶10～350mm
Working system∶10%，Max.2min./18min.
level of protection∶IP42
Environment temperature∶+5℃～+40℃
